Product Summary

The AD7490BRUZ is a 12-bit high speed, low power, 16-channel, successive approximation ADC.

Parametrics

AD7490BRUZ Parametrics:

Packaging Tube
Number of Bits 12
Sampling Rate (Per Second) 1M
Data Interface DSP, MICROWIRE?, QSPI?, Serial, SPI?
Number of Converters 1
Voltage Supply Source Single Supply
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount

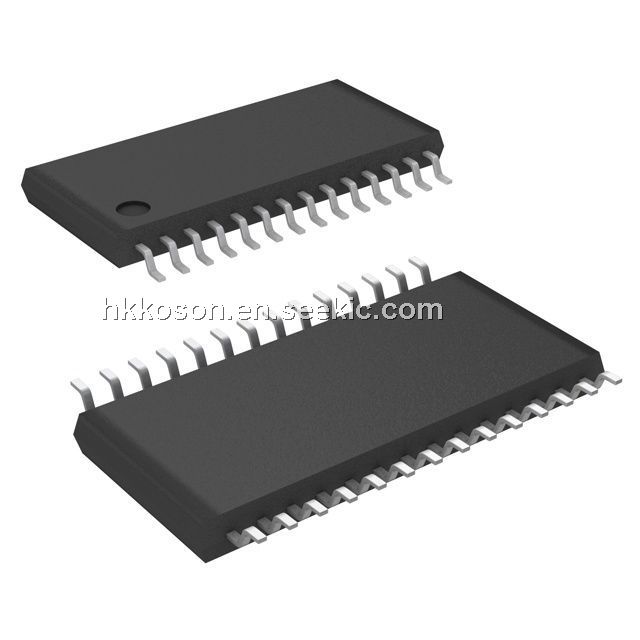

Package / Case 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 28-TSSOP
Number of Inputs and Type 16 Single-Ended, Unipolar
Dynamic Catalog 12 Bit

Features

AD7490BRUZ Features:


  • Fast throughput rate: 1 MSPS
  • Specified for VDD of 2.7 V to 5.25 V
  • Low power at maximum throughput rates
  • 5.4 mW maximum at 870 kSPS with 3 V supplies
  • 12.5 mW maximum at 1 MSPS with 5 V supplies
  • 16 (single-ended) inputs with sequencer
  • Wide input bandwidth
  • 69.5 dB SNR at 50 kHz input frequency
  • Flexible power/serial clock speed management
  • No pipeline delays
  • High speed serial interface, SPI/QSPI?/MICROWIRE?/DSP compatible
  • Full shutdown mode: 0.5 μA maximum

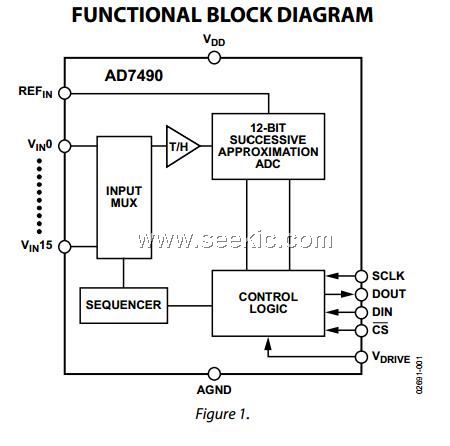

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7490BRUZ
AD7490BRUZ

IC ADC 12BIT 16CH 1MSPS 28TSSOP
Data Sheet
0-1: $7.32
1-10: $6.65
10-25: $6.15
25-100: $5.65
100-250: $5.16
250-500: $4.82
500-1000: $4.44
AD7490BRUZ-REEL
AD7490BRUZ-REEL

IC ADC 12BIT 16CHAN 28TSSOP
Data Sheet
0-2500: $4.44
AD7490BRUZ-REEL7
AD7490BRUZ-REEL7

IC ADC 12BIT 16CHAN 28TSSOP
Data Sheet
0-1000: $4.44
