Product Summary

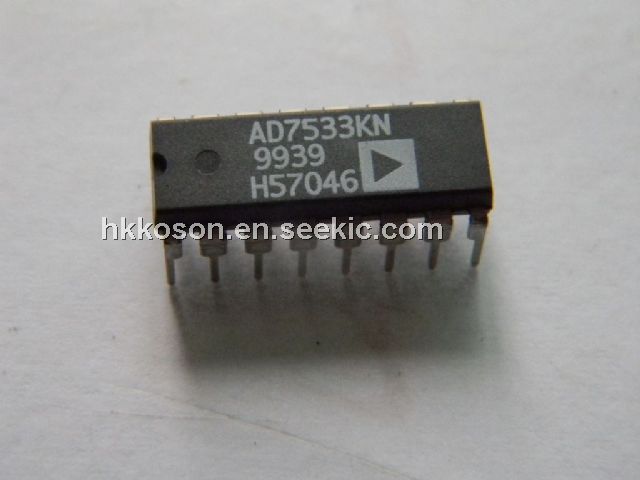

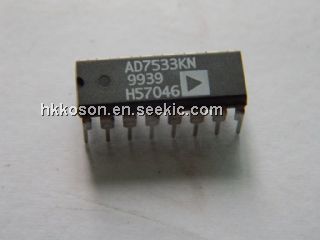

The AD7533KN is a low cost, 10-bit, 4-quadrant multiplying DAC manufactured using an advanced thin-film-on-monolithic-CMOS
wafer fabrication process.
Parametrics
AD7533KN Parametrics:

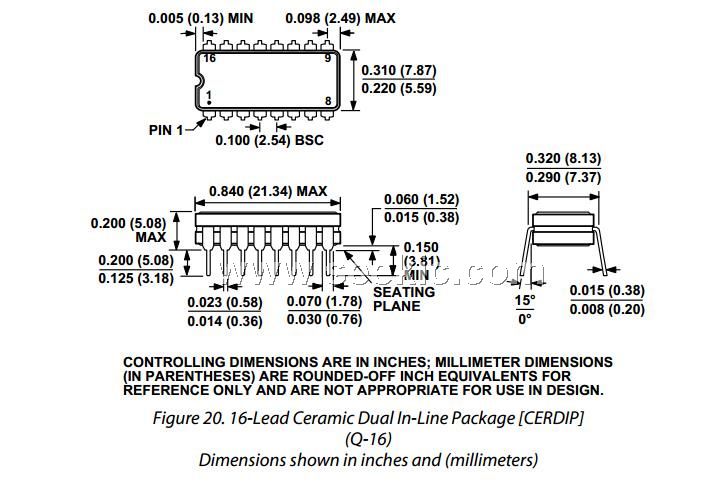

| Packaging | Tube |
|---|---|
| Settling Time | 600ns |
| Number of Bits | 10 |
| Data Interface | Parallel |
| Number of Converters | 1 |
| Voltage Supply Source | Single Supply |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package/Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Number of Outputs and Type | 2 Current, Unipolar; 2 Current, Bipolar |
| Sampling Rate (Per Second) | 1.7M |
| Dynamic Catalog | 10 Bit |
Features
AD7533KN Features:
- Low cost 10-bit DAC
- Low cost AD7520 replacement
- Linearity: ? LSB, 1 LSB, or 2 LSB
- Low power dissipation
- Full 4-quadrant multiplying DAC
- CMOS/TTL direct interface
- Latch free (protection Schottky not required)
- Endpoint linearity
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7533KN |
|
IC DAC 10BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
|
AD7533KNZ |
|
IC DAC 10BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
