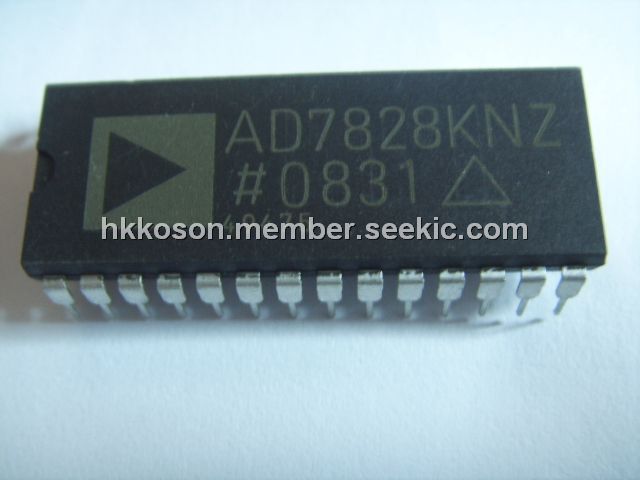

AD7828KNZ

8-bit ADC, 8CHAN, 28DIP, 0 V to 5 V, 10 kHz, 40 mW, AD7828KNZ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.85~5.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.85~5.65

PartNumber:: AD7828KNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Winnie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-16

From Other Seller

Part Number:AD7828KNZ
US $4.85 - 5.65
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

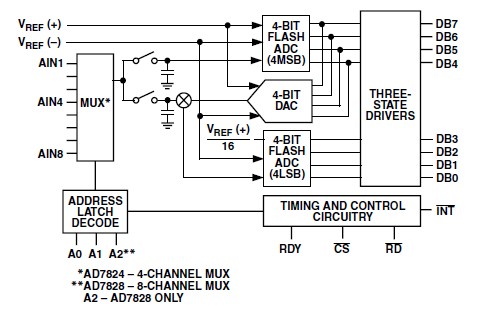

The AD7828KNZ is a high speed, multichannel, 8-bit ADC with a choice of eight multiplexed analog inputs. A half-flash conversion technique gives a fast conversion rate of 2.5 μs per channel, and the parts have a built-in track-and-hold function capable of digitizing full-scale signals of 10 kHz (157 mV/μs slew rate) on all channels. The AD7828KNZ operates from a single 5 V supply and have an analog input range of 0 V to 5 V, using an external 5 V reference. The AD7828KNZ is fabricated in an advanced, all ion-implanted, linear compatible CMOS process (LC2MOS) and have low power dissipation of 40 mW (typ).

Parametrics

AD7828KNZ absolute maximum ratings: (1)VDD: 0 V, 7 V; (2)Digital Input Voltage to GND(RD, CS, A0, A1, and A2): –0.3 V, VDD + 0.3 V; (3)Digital Output Voltage to GND(DB0, DB7, RDY, and INT): –0.3 V, VDD + 0.3 V; (4)VREF (+) to GND: VREF (–), VDD + 0.3 V; (5)VREF (–) to GND: 0 V, VREF (+); (6)Analog Input (Any Channel): –0.3 V, VDD + 0.3 V; (7)Operating Temperature Range Commercial (K, L Versions): 0℃ to 70℃; Industrial (B, C Versions): –40℃ to +85℃; Extended (T, U Versions): –55℃ to +125℃; (8)Storage Temperature Range: –65℃ to +150℃; (9)Lead Temperature (Soldering, 10 secs): 300℃; (10)Power Dissipation (Any Package) to 75℃: 450 mW; (11)Derates above 75℃ by: 6 mW/℃.

Features

AD7828KNZ features: (1)4 or 8 Analog Input Channels; (2)Built-In Track-and-Hold Function; (3)10 kHz Signal Handling on Each Channel; (4)Fast Microprocessor Interface; (5)Single 5 V Supply; (6)Low Power: 50 mW; (7)Fast Conversion Rate: 2.5 μs/Channel; (8)Tight Error Specification: 1/2 LSB.
