Product Summary
The AD9220ARZ is a high-performance Monolithic A/D Converter.
Parametrics
AD9220ARZ Parametrics:
Packaging
Tube
Number of Bits
12
Sampling Rate (Per Second)
10M
Data Interface
Parallel
Number of Converters
1
Voltage Supply Source
Analog and Digital
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
28-SOIC (0.295", 7.50mm Width)
Supplier Device Package
28-SOIC W
Number of Inputs and Type
2 Single-Ended, Unipolar; 1 Differential, Unipolar
Dynamic Catalog
12 Bit
Features
AD9220ARZ Features:
- Single 5 V Supply
- Integral Nonlinearity Error: 0.5 LSB
- Differential Nonlinearity Error: 0.3 LSB
- Input Referred Noise: 0.09 LSB
- Complete On-Chip Sample-and-Hold Amplifier and Voltage Reference
- Signal-to-Noise and Distortion Ratio: 70 dB
- Spurious-Free Dynamic Range: 86 dB
- Out-of-Range Indicator
- Straight Binary Output Data

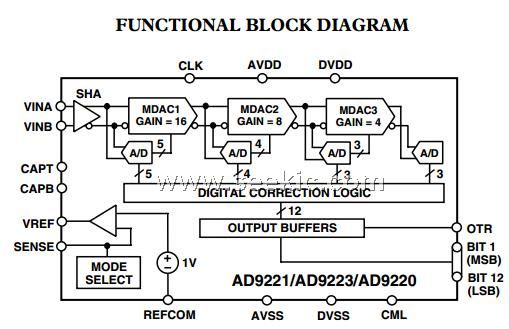

Diagrams
