Product Summary
The ADF4351BCPZ is a high-performance Wideband Synthesizer with Integrated VCO.
Parametrics
ADF4351BCPZ Parametrics:
| Packaging | Tray |
|---|---|
| Type | Fanout Distribution, Fractional N, Integer N, Clock/Frequency Synthesizer (RF) |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:3 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 4.4GHz |
| Divider/Multiplier | Yes/Yes |
| Voltage - Supply | 3 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

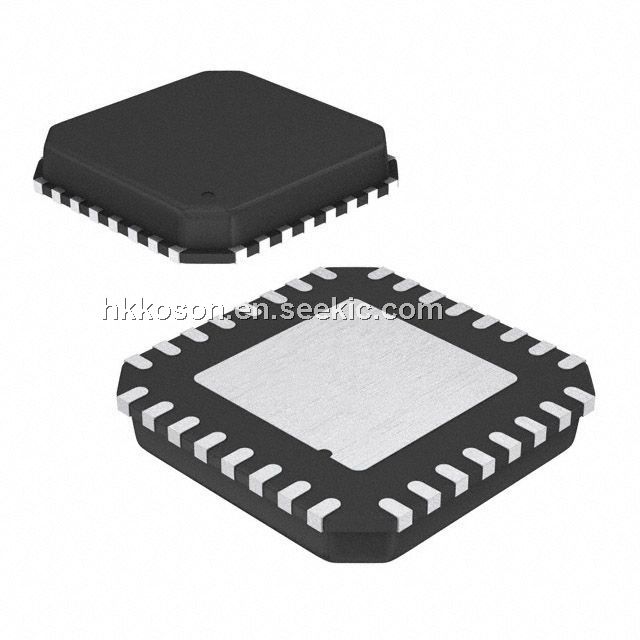

| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Dynamic Catalog | Clock Generators |
Features
ADF4351BCPZ Features:
- Output frequency range: 35 MHz to 4400 MHz
- Fractional-N synthesizer and integer-N synthesizer
- Low phase noise VCO
- Typical jitter: 0.3 ps rms
- Typical EVM at 2.1 GHz: 0.4%
- Power supply: 3.0 V to 3.6 V
- Logic compatibility: 1.8 V
- Programmable output power level
- RF output mute function
- 3-wire serial interface
- Analog and digital lock detect
- Switched bandwidth fast lock mode
- Cycle slip reduction

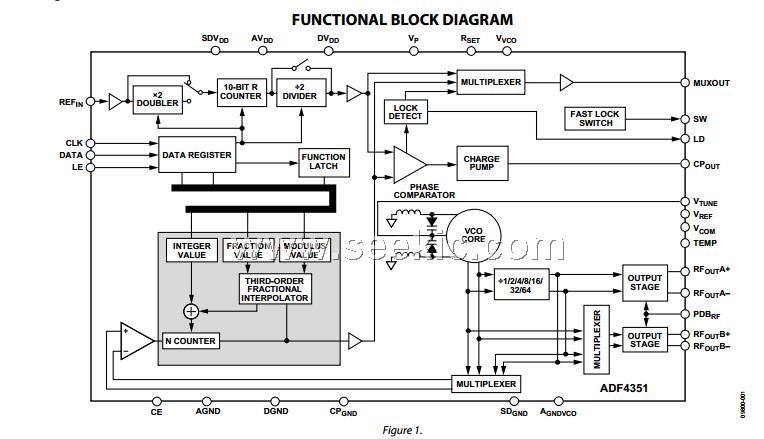

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADF4351BCPZ |
|
IC SYNTH PLL VCO 32LFCSP |
Data Sheet |
|
|
||||||||||||||||
|
ADF4351BCPZ-RL7 |
|
IC SYNTH PLL VCO 32LFCSP |
Data Sheet |
|
|
||||||||||||||||
