Product Summary

The ADM2483BRWZ is a high-efficiency Transceiver.It is useful for Building control networks,Isolated interfaces,Low power

RS-485/RS-422 networks ,Isolated interfaces and Multipoint data transmission systems.

Parametrics

ADM2483BRWZ Parametrics:(1)Data Rate:500kbps    (2)Voltage - Supply:3.3V, 5V    (3)Mounting Type:Surface Mount

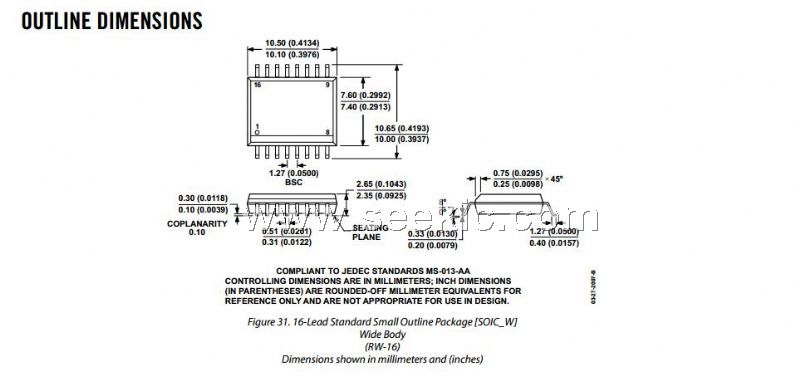

(4)Package / Case:16-SOIC (0.295", 7.50mm Width)    (5)Receiver Hysteresis:20mV

(6)Operating Temperature:-40°C ~ 85°C

Features

ADM2483BRWZ Features:(1)RS-485 transceiver with electrical data isolation   (2)Slew rate-limited driver outputs

(3)Low power operation: 2.5 mA max  (4)High common-mode transient immunity: >25 kV/μs

(5)True fail-safe receiver inputs        (6)Chatter-free power-up/power-down protection     (7)256 nodes on bus

(8)Thermal shutdown protection     (9)Safety and regulatory approvals

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM2483BRWZ
ADM2483BRWZ

IC TXRX RS485 ISOLATED 16SOIC
Data Sheet
0-1: $4.10
1-10: $3.69
10-100: $3.04
100-250: $2.79
250-500: $2.54
500-1000: $2.22
1000-2500: $2.19
ADM2483BRWZ-REEL
ADM2483BRWZ-REEL

IC TXRX RS-485 ISOLATED 16SOIC
Data Sheet
0-1000: $2.22
