Product Summary
The AOZ1212AI is a high-performance Buck Regulator.
Parametrics
AOZ1212AI Parametrics:
Packaging
Tape & Reel (TR)
Type
Step-Down (Buck)
Output Type
Adjustable
Number of Outputs
1
Voltage - Output
0.8 V ~ 27 V
Voltage - Input
4.5 V ~ 27 V
PWM Type
Current Mode
Frequency - Switching
370kHz
Current - Output
3A
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Dynamic Catalog
Buck (Step-Down) IC
Other Names
785-1159-2
Features
AOZ1212AI Features:
● 4.5V to 27V operating input voltage range
● 70mΩ internal NFET, efficiency: up to 95%
● Internal soft start
● Output voltage adjustable down to 0.8V
● 3A continuous output current
● Fixed 370kHz PWM operation
● Cycle-by-cycle current limit
● Short-circuit protection
● Thermal shutdown

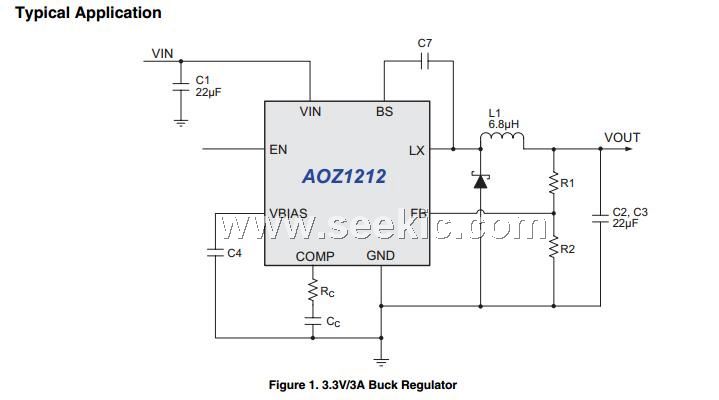

Diagrams
