Product Summary

The APT30GT60BRG is a new high voltage power IGBT. Using Non-Punch Through Technology the APT30GT60BRG offers superior ruggedness and ultrafast switching speed.

Parametrics

APT30GT60BRG absolute maximum ratings: (1)VCES Collector-Emitter Voltage: 600V; (2)VCGR Collector-Gate Voltage (RGE = 20KΩ): 600V; (3)VEC Emitter-Collector Voltage: 15V; (4)VGE Gate-Emitter Voltage: ±20V; (5)EAS: 65mJ; (6)PD: 250W; (7)TJ,TSTG: -55 to 150℃; (8)TL: 300℃.

Features

APT30GT60BRG features: (1)Low Forward Voltage Drop; (2)High Freq. Switching to 150KHz; (3)Low Tail Current; (4)Ultra Low Leakage Current; (5)Avalanche Rated; (6)RBSOA and SCSOA Rated.

Diagrams

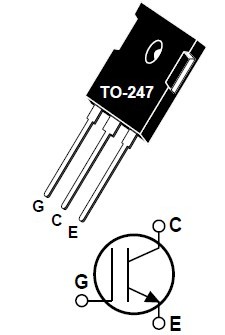

APT30GT60BRG diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APT30GT60BRG
APT30GT60BRG

IGBT 600V 64A 250W TO247
Data Sheet
0-60: $3.79
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APT30D100B
APT30D100B
Other

Data Sheet
Negotiable
APT30D100BCA
APT30D100BCA
Other

Data Sheet
Negotiable
APT30D100BCAG
APT30D100BCAG

DIODE ULT FAST 2X18A 1000V TO247
Data Sheet
Negotiable
APT30D100BG
APT30D100BG

DIODE ULT FAST 30A 1000V TO-247
Data Sheet
0-1: $2.66
1-10: $2.38
10-100: $1.95
100-250: $1.76
250-500: $1.58
500-1000: $1.33
1000-2500: $1.27
2500-5000: $1.21
5000-10000: $1.18
APT30D100SG
APT30D100SG

DIODE ULT FAST 30A 1000V D3PAK
Data Sheet
0-60: $2.54
APT30D120BG
APT30D120BG

DIODE ULT FAST 30A 1200V TO-247
Data Sheet
0-1: $3.20
1-10: $2.86
10-100: $2.34
100-250: $2.12
250-500: $1.90
500-1000: $1.60
1000-2500: $1.52
2500-5000: $1.46
5000-10000: $1.42
