Product Summary
The BC547C is an NPN Silicon Amplifier Transistor.
Parametrics
BC547C absolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 45V; (2)Collector-Base Voltage, VCBO: 50 V; (3)Emitter-Base Voltage, VEBO: 6.0 V; (4)Collector Current(DC), IC: 100 mA; (5)Power Dissipation at TA=25℃, Pd: 625mW; 5.0 mW/℃; (6)Power Dissipation at TC=25℃, Pd: 1.5W; 12mW/℃; (7)Thermal Resistance, Junction to Ambient Air, RθJA: 200℃/W; (8)Thermal Resistance, Junction to Case, RθJC: 83.3℃/W; (9)Operating & Storage Temperature Tj, TSTG: -55 to 150℃.
Features
BC547C features: (1)Through Hole Package; (2)150℃ Junction Temperature.

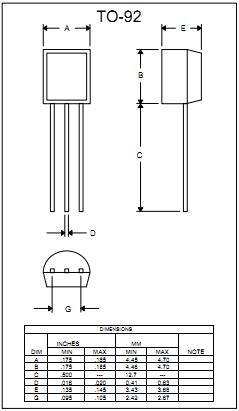

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BC547C |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN 45V 100mA HFE/8 |
Data Sheet |
|
|
||||||||||||
 |
BC547C AMO |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP AMMO WIDE PITCH |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC547C T/R |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE RADIAL |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC547C_D11Z |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN 45V 100mA HFE/800 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC547C_D27Z |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN 45V 100mA HFE/800 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC547C_J35Z |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN GEN PURP XTOR |
Data Sheet |
|
|
||||||||||||
|
BC547C_Q |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN 45V 100mA HFE/8 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BC547C-AP |
|
TRANSISTOR NPN 100MA 45V TO-92 |
Data Sheet |
|
|
||||||||||||
