Product Summary

The CD74HC154EN is a high-performance Logic IC.

Parametrics

CD74HC154EN Parametrics:

Packaging   Tube
Type Decoder/Demultiplexer
Circuit 1 x 4:16
Independent Circuits 1
Current - Output High, Low 5.2mA, 5.2mA
Voltage Supply Source Single Supply
Voltage - Supply 2 V ~ 6 V
Operating Temperature -55°C ~ 125°C
Mounting Type Through Hole

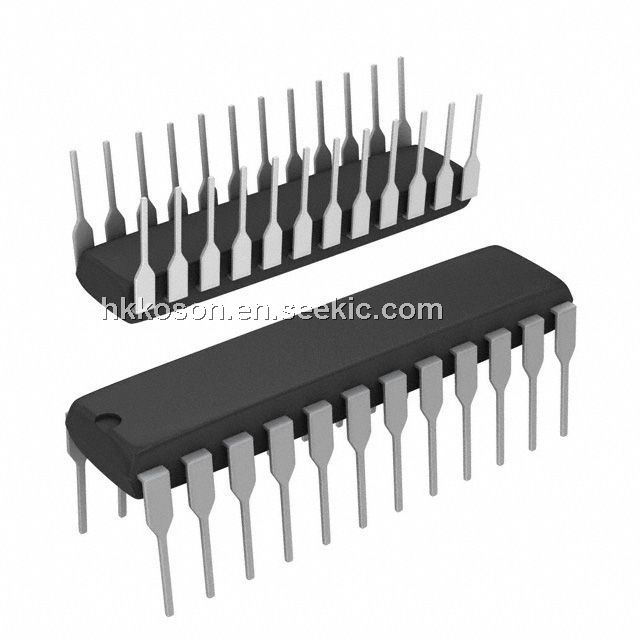

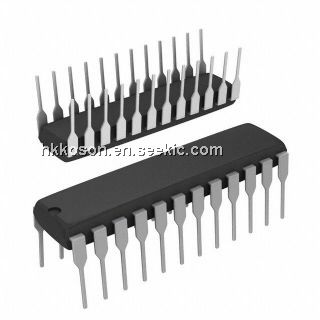

Package / Case 24-DIP (0.300", 7.62mm)
Supplier Device Package 24-PDIP
Dynamic Catalog 74HC
Other Names 296-9181-5

Features

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CD74HC154EN
CD74HC154EN
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Line Decoder
Data Sheet
0-1: $0.59
1-25: $0.54
25-100: $0.41
100-250: $0.41
CD74HC154ENE4
CD74HC154ENE4
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Hi-Spd CMOS 4-16 Ln Decoder/Demltplxr
Data Sheet
0-1: $0.60
1-25: $0.48
25-100: $0.44
100-250: $0.38
