Product Summary
The CD74HC4351E is a high-performance Interface IC.
Parametrics
CD74HC4351E Parametrics:
Packaging
Tube
Function
Multiplexer/Demultiplexer
Circuit
1 x 8:1
On-State Resistance
130 Ohm
Voltage Supply Source
Single, Dual Supply
Voltage - Supply, Single/Dual (±)
2 V ~ 6 V, ±1 V ~ 5 V
Current - Supply
-
Operating Temperature
-55°C ~ 125°C
Mounting Type
Through Hole

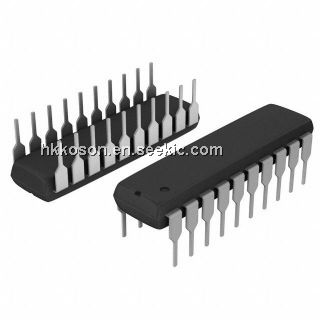

Package / Case
20-DIP (0.300", 7.62mm)
Supplier Device Package
20-PDIP
Dynamic Catalog
Multiplexer/Demultiplexer
Other Names
296-9231-5
Features
CD74HC4351E Features:
? Wide Analog Input Voltage Range . . . . . . . . . ±5V (Max)
? Low “On” Resistance
- VCC - VEE = 4.5V. . . . . . . . . . . . . . . . . . . . . . 70Ω (Typ)
- VCC - VEE = 9V . . . . . . . . . . . . . . . . . . . . . . . 40Ω (Typ)
? Low Crosstalk Between Switches
? Fast Switching and Propagation Speeds
? “Break-Before-Make” Switching
? HC Types
- 2V to 6V Operation, Control; 0V to 10V Switch
- High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
? HCT Types
- 4.5V to 5.5V Operation, Control; 0V to 10V Switch
- Direct LSTTL Input Logic Compatibility,VIL= 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, Il≤ 1μA at VOL, VOH

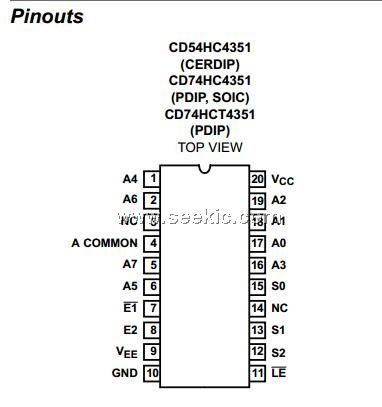

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD74HC4351E |
Texas Instruments |
Multiplexer Switch ICs Analog w/ Latch |
Data Sheet |
|
|
||||||||||||
|
CD74HC4351EE4 |
Texas Instruments |
Multiplexer Switch ICs Hi-Speed CMOS 8Anlg Mltplxr/DeMltplxr |
Data Sheet |
|
|
||||||||||||
