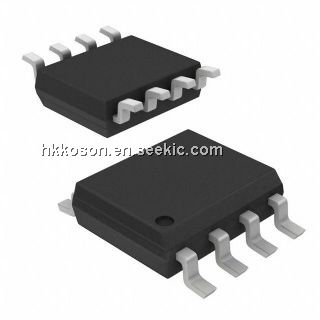

Product Summary
The FAN7380MX is a monolithic half-bridge gate drive IC for MOSFETs and IGBTs, which operate up to +600V.Fairchild’s
high-voltage process and common-mode noise canceling technique give stable operation of highside driver under high-dv/dt
noise circumstances
Parametrics
FAN7380MX Parametrics:
Packaging
Tape & Reel (TR)
Configuration
Half Bridge
Input Type
Non-Inverting
Delay Time
135ns
Current - Peak
90mA
Number of Configurations
1
Number of Outputs
2
High Side Voltage - Max (Bootstrap)
600V
Voltage - Supply
10 V ~ 20 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
Half Bridge
Other Names
FAN7380MX_NL
FAN7380MX_NLTR
FAN7380MX_NLTR-ND
FAN7380MXTR
Features
FAN7380MX Features:
- ? Floating Channel Designed for Bootstrapping Operation to +600V
- ? Typically 90mA/180mA Sourcing/Sinking Current Driving Capability for Both Channels
- ? Common-Mode dv/dt Noise Canceling Circuit
- ? Extended Allowable Negative VS Swing to -9.8V for Signal Propagation at VCC=VBS=15V
- ? VCC & VBS Supply Range from 10V to 20V
- ? UVLO Functions for Both Channels
- ? TTL-Compatible Input Logic Threshold Levels
- ? Matched Propagation Delay Below 50ns
- ? Built-in 100ns Dead-Time Control Function
- ? Output in Phase with Input Signal

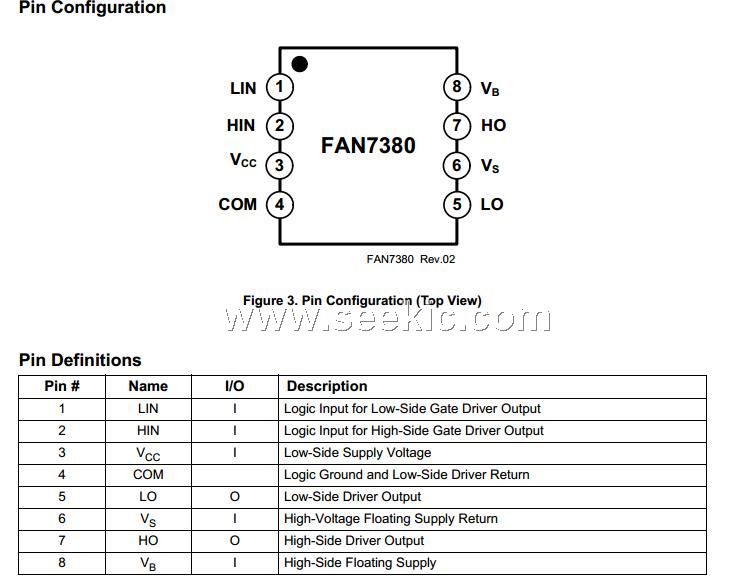

Diagrams
