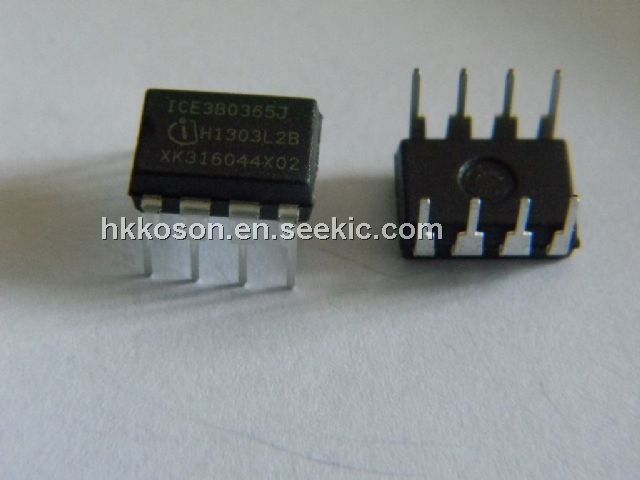

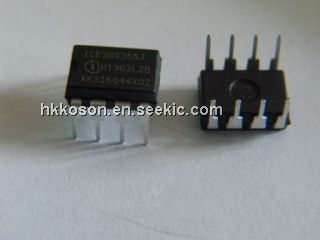

Product Summary

The ICE3B0365J meets the requirements for Off-Line Battery Adapters and low cost SMPS for the lower power range.

By use of a BiCMOS technology a wide VCC range up to 26V is provided. This covers the changes in the auxiliary supply voltage

if a CV/CC regulation is implemented on the secondary side.

Parametrics

ICE3B0365J Parametrics:


  • Series: CoolSET?F3
  • Packaging: Tube
  • Output Isolation: Isolated
  • Frequency Range: 58kHz ~ 76kHz
  • Voltage - Input: 10.3 V ~ 27 V
  • Voltage - Breakdown: 650V
  • Voltage - Output: -
  • Power (Watts): 22W
  • Operating Temperature: -25°C ~ 130°C
  • Package/Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Packag: PG-DIP-8
  • Dynamic Catalog: AC DC Converters, Offline Switchers


Features

ICE3B0365J Features:


  • 650V Avalanche Rugged CoolMOS?with built in switchable Startup Cell
  • Active Burst Mode for lowest Standby Power@ light load controlled by Feedback Signal
  • Fast Load Jump Response in Active Burst Mode
  • 67 kHz fixed Switching Frequency
  • Auto Restart Mode for Over temperature Detection
  • Auto Restart Mode for Overvoltage Detection
  • Auto Restart Mode for Overload and Open Loop
  • Auto Restart Mode for VCC Undervoltage
  • User defined Soft Start
  • Minimum of external Components required
  • Max Duty Cycle 75%
  • Overall Tolerance of Current Limiting < ±5%
  • Internal Leading Edge Blanking
  • BiCMOS technology provides wide VCC Range
  • Frequency Jittering for Low EMI


Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ICE3B0365J
ICE3B0365J

Infineon Technologies

Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V

Data Sheet

0-960: $0.46
960-1000: $0.36
1000-2000: $0.30
2000-8000: $0.29
ICE3B0365JG
ICE3B0365JG

Infineon Technologies

Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V

Data Sheet

0-1520: $0.47
1520-2500: $0.40
2500-5000: $0.38
5000-10000: $0.37
ICE3B0365JZ
ICE3B0365JZ

Infineon Technologies

Current Mode PWM Controllers COOLSET IC CUR-MODE PWM CTRLR 650V

Data Sheet

Negotiable
