Product Summary

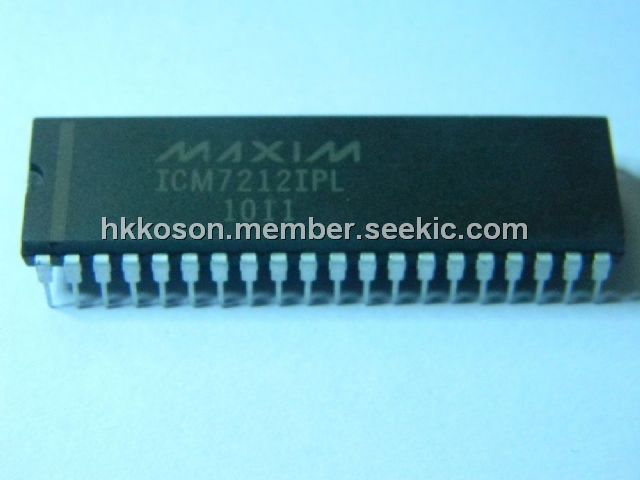

The ICM7212IPL is a four digit CMOS display decoder. It is configured to drive conventional LCD displays by providing a complete RC oscillator, divider chain, backplane driver, and 28 segment outputs.The ICM7212IPL is availble with two input configurations. The device provices four data bit inputs and four digit select inputs.It will decode the four bit binary input into a sevem-segment alphanumeric hexadecimal output. The ICM7212IPL is packaged in a standard 40 pin plastic dual-in-line package and all inputs are fully protected against static discharge. The applicaitons of the device include digital panel displays, intellignet instruments, remote display units and microprocessor-to-visual communication.
Parametrics
ICM7212IPL absolute maximum ratings: (1)power dissipation:0.5W @ 70℃; (2)supply voltage:6.5V; (3)input voltage(any interminal):V+ +0.3V to ground-0.3V; (4)operating temperature range:-20℃ to +70℃; (5)storage temperature range:-55℃ to +125℃; (6)lead temperature(soldering 10sec.):300℃.
Features
ICM7212IPL features: (1)four digit non-multiplexed 7 segment LCD display outputs with backplane driver; (2)complete onboard RC oscillator to generated backplane frequency; (3)backplane input/output allows simple synchronization of slave-device segment outputs to a master backplane signal; (4)provice separate digit select inputs to accept multiplexed BCD input(pinout and functionally compatible with siliconix DF411); (5)decodes binary to code B(0-9, dash, E, H, L, P, blank).

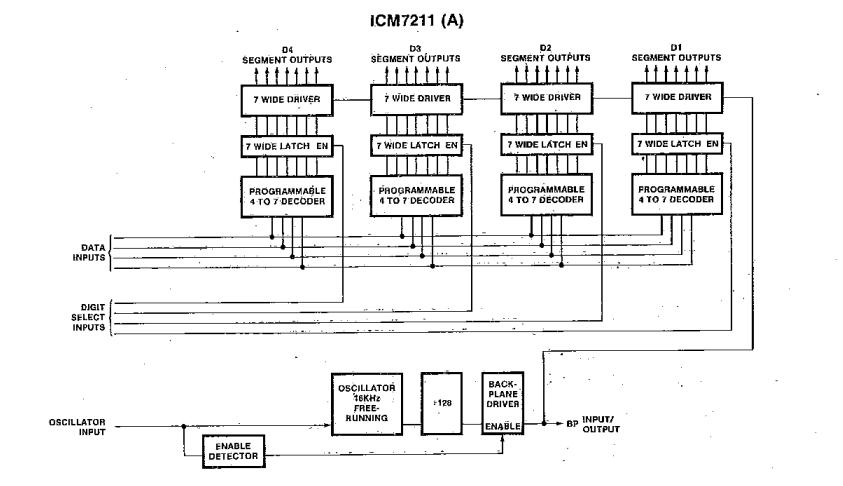

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICM7212IPL |
Maxim Integrated Products |
LED Display Drivers |
Data Sheet |
Negotiable |
|
||||
