Product Summary

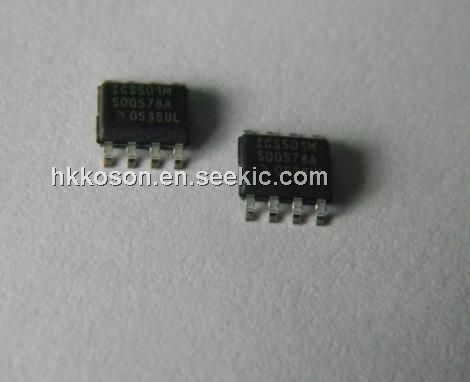

The ICS501M is a high-performance Clock Generator IC.

Parametrics

ICS501M Parametrics:

Packaging Tube
Type Clock Generator
PLL Yes
Input Clock, Crystal
Output CMOS
Number of Circuits 1
Ratio - Input:Output 1:1
Differential - Input:Output No/No
Frequency - Max 160MHz
Divider/Multiplier No/Yes
Voltage - Supply 3 V ~ 5.25 V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package/Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Other Names 501M


Features

ICS501M Features:

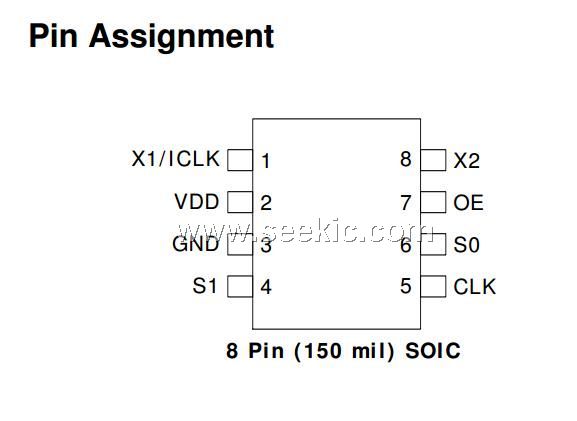

  • Packaged as 8-pin SOIC
  • Available in RoHS 5 (green) or RoHS 6 (green and lead free) compliant packaging
  • IDT’s lowest cost PLL clock
  • Zero ppm multiplication error
  • Input crystal frequency of 5 - 27 MHz
  • Input clock frequency of 2 - 50 MHz
  • Output clock frequencies up to 160 MHz
  • Extremely low jitter of 25 ps (one sigma)
  • Compatible with all popular CPUs
  • Duty cycle of 45/55 up to 160 MHz
  • Nine selectable frequencies
  • Tri-state output for board level testing
  • 25 mA drive capability at TTL levels
  • Ideal for oscillator replacement
  • Industrial temperature version available
  • Advanced, low-power CMOS process

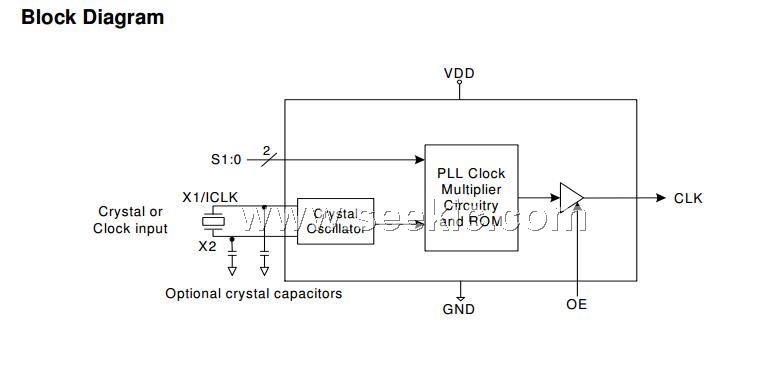

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ICS501M
ICS501M

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
Negotiable
ICS501MI
ICS501MI

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
Negotiable
ICS501MILF
ICS501MILF

IC CLK MULTIPLIER PLL 8-SOIC
Data Sheet
0-1: $1.71
1-25: $1.38
25-100: $1.24
100-250: $1.10
250-500: $0.96
500-1000: $0.80
1000-2500: $0.74
2500-5000: $0.72
5000-10000: $0.69
ICS501MILFT
ICS501MILFT

IC CLK MULTIPLIER PLL 8-SOIC
Data Sheet
0-1: $1.93
1-25: $1.49
25-100: $1.35
100-250: $1.21
250-500: $1.05
500-1000: $0.88
ICS501MIT
ICS501MIT

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
Negotiable
ICS501MLF
ICS501MLF

IC CLK MULTIPLIER PLL 8-SOIC
Data Sheet
0-1: $1.24
1-25: $0.99
25-100: $0.90
100-250: $0.80
250-500: $0.70
500-1000: $0.58
1000-2500: $0.54
2500-5000: $0.52
5000-10000: $0.50
ICS501MLFT
ICS501MLFT

IC CLK MULTIPLIER PLL 8-SOIC
Data Sheet
0-1: $1.39
1-25: $1.07
25-100: $0.97
100-250: $0.88
250-500: $0.76
500-1000: $0.64
ICS501MT
ICS501MT

IC PLL CLK MULTIPLIER 8-SOIC
Data Sheet
Negotiable
