Product Summary

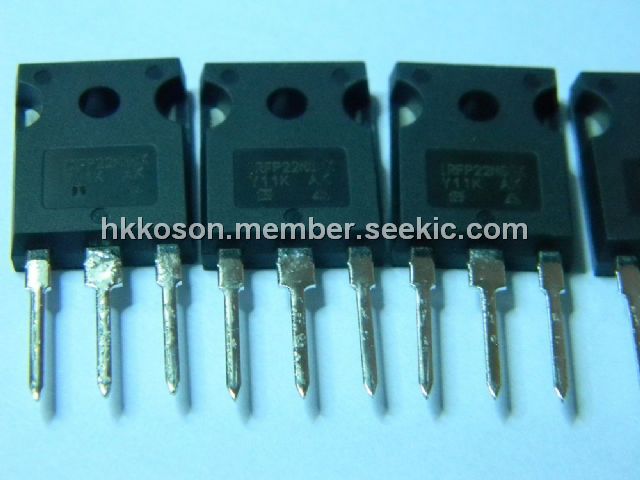

The IRFP22N60KPBF is a power MOSFET.
Parametrics
IRFP22N60KPBF absolute maximum ratings: (1)Drain-Source Voltage VDS: 600V; (2)Gate-Source Voltage VGS: ± 30V; (3)Continuous Drain Current VGS at 10 V: 22A; (4)Pulsed Drain Current IDM: 88A; (5)Linear Derating Factor: 2.9 W/℃; (6)Single Pulse Avalanche Energyb EAS: 380 mJ; (7)Repetitive Avalanche Currenta IAR: 22 A; (8)Repetitive Avalanche Energya EAR: 37 mJ; (9)Maximum Power Dissipation TC = 25 ℃ PD: 370 W; (10)Peak Diode Recovery dV/dtc dV/dt: 15 V/ns; (11)Operating Junction and Storage Temperature Range TJ, Tstg: - 55 to + 150℃
Features
IRFP22N60KPBF features: (1)Hard Switching Primary or PFS Switch; (2)Low Gate Charge Qg Results in Simple Drive Requirement; (3)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (4)Fully Characterized Capacitance and Avalanche Voltage and Current; (5)Enhanced Body Diode dV/dt Capability; (6)Lead (Pb)-free Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFP22N60KPBF |
Vishay/Siliconix |
MOSFET N-Chan 600V 22 Amp |
Data Sheet |
|
|
||||||||||||
