Product Summary

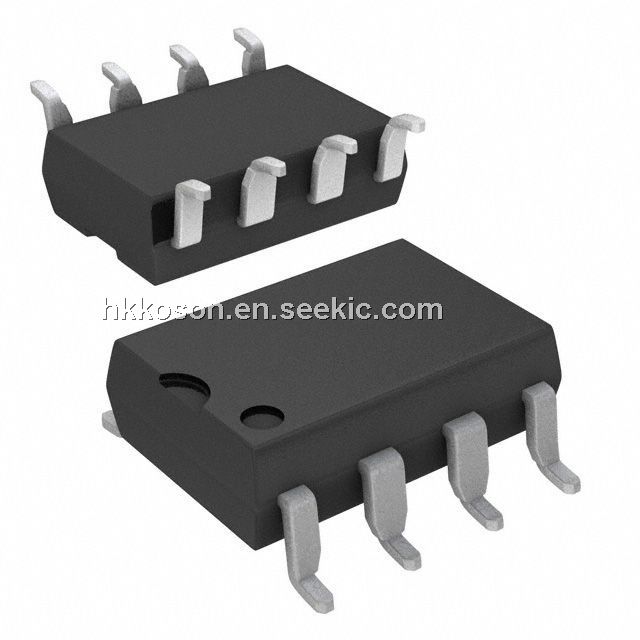

The ISO1050DUBR is a high-performance ISOLATED CAN TRANSCEIVER.
Parametrics
ISO1050DUBR Parametrics:
Packaging
Tape & Reel (TR)
Type
Transceiver
Protocol
CAN
Number of Drivers/Receivers
1/1
Duplex
Half
Receiver Hysteresis
150mV
Data Rate
1Mbps
Voltage - Supply
3 V ~ 5.5 V
Operating Temperature
-55°C ~ 105°C
Mounting Type
Surface Mount
Package / Case
8-SMD, Gull Wing
Supplier Device Package
8-SOP
Dynamic Catalog
CAN Transceiver
Other Names
296-24818-2
Features
ISO1050DUBR Features:
? Meets the Requirements of ISO11898-2
? Failsafe Outputs
? Low Loop Delay: 150ns (Typ), 210ns (Max)
? 50 kV/μs Typical Transient Immunity
? Bus-Fault Protection of –27 V to 40 V
? Driver (TXD) Dominant Time Out Function
? IEC 60747-5-2 (VDE 0884, Rev. 2) and IEC 61010-1 Approved
? UL 1577 Double Protection Approved; See Regulatory Information Sectio
? IEC 60601-1 (Medical) and CSA Approved

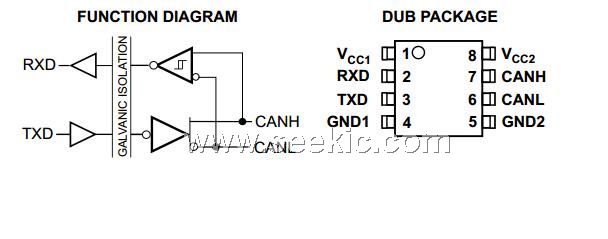

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISO1050DUBR |
Texas Instruments |
Isolator Interface IC Iso 5V CAN Xcvr |
Data Sheet |
|
|
||||||||||||||
