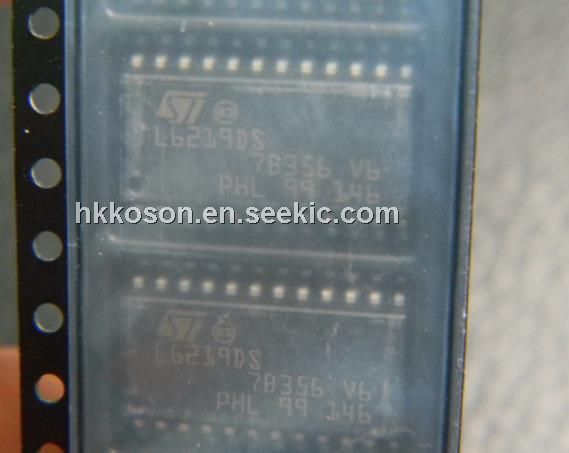

Product Summary
The L6219DS motor driver is designed to drive both windings of a bipolar stepper motor or bidirectionally control two DC
motors. Both bridges are capable of sustaining 45 V and include internal pulse-width modulation (PWM) control of the output
current to 750 mA. The outputs have been optimized for a low output saturation voltage drop (less than 1.8 V total source
plus sink at 500 mA).
Parametrics
L6219DS Parametrics:
Packaging
Tube
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
-
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Full H-Bridge, (2) Dual
Interface
Parallel
Applications
General Purpose
Current - Output
750mA
Voltage - Supply
4.75 V ~ 5.25 V
Voltage - Load
10 V ~ 45 V
Operating Temperature
-20°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
24-SOIC (0.295", 7.50mm Width)
Supplier Device Package
24-SOIC W
Features
L6219DS Features：
- Interchangeable with SGS L6219DS
- 750 mA Continuous Output Current
- 45 V Output Sustaining Voltage
- Internal Clamp Diodes
- Internal PWM Current Control
- Low Output Saturation Voltage
- Internal Thermal Shutdown Circuitry
- Similar to Dual PBL3717, UC3770

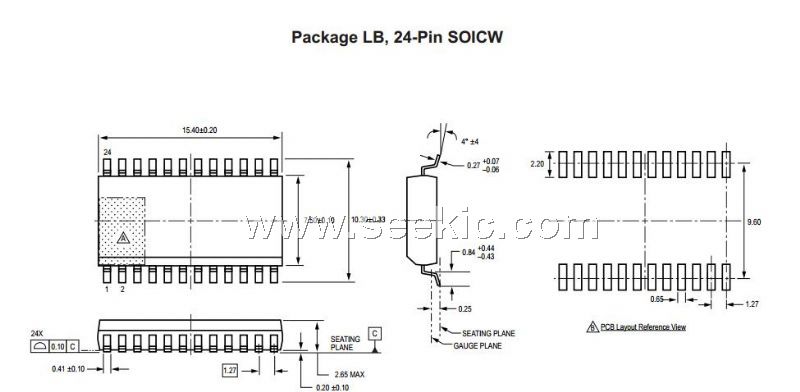

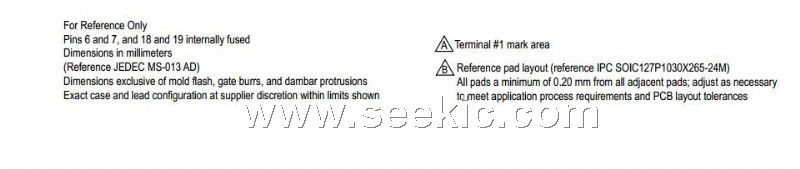

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L6219DS |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Dual Stepper Motor |
Data Sheet |
Negotiable |
|
||||||
|
L6219DS013TR |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Dual Stepper Motor |
Data Sheet |
Negotiable |
|
||||||
|
L6219DSA |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Dual Stepper Motor |
Data Sheet |
Negotiable |
|
||||||
|
L6219DSA13TR |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Dual Stepper Motor |
Data Sheet |
Negotiable |
|
||||||
 |
L6219DS-T |
|
IC MOTOR DRVR PWM DUAL 24SOIC |
Data Sheet |
|
|
||||||
|
L6219DSTR |
|
IC MOTOR DRVR PWM DUAL 24SOIC |
Data Sheet |
Negotiable |
|
||||||
|
L6219DSTR-T |
|
IC MOTOR DRIVER PWM DUAL 24-SOIC |
Data Sheet |
Negotiable |
|
||||||
