Product Summary

The L78S05CV is a high-performance 2 A positive voltage regulator IC.

Parametrics

L78S05CV Parametrics:

Packaging   Tube
Regulator Topology Positive Fixed
Voltage - Output 5V
Current - Output 2A
Voltage - Dropout (Typical) -
Number of Regulators 1
Voltage - Input Up to 35V
Current - Limit (Min) -
Operating Temperature 0°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Dynamic Catalog 3.3V to 5V
Other Names 497-1468-5

Features

L78S05CV Features:

? Output current up to 2 A
? Thermal protection
? Short circuit protection
? Output transition SOA protection

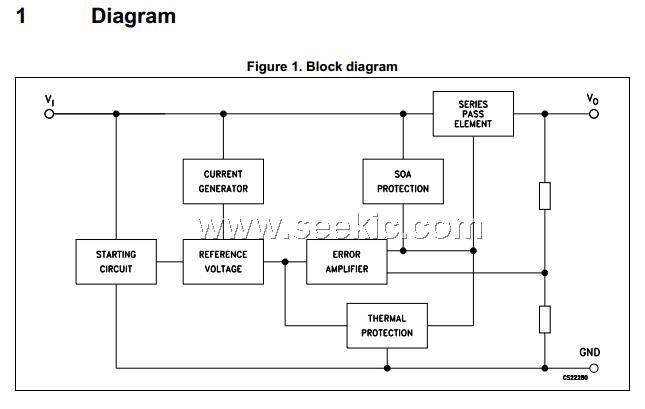

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L78S05CV
L78S05CV
STMicroelectronics
Linear Regulators - Standard 5.0V 2.0A Positive
Data Sheet
0-1: $0.44
1-10: $0.35
10-100: $0.31
100-250: $0.26
L78S05CV-DG
L78S05CV-DG
STMicroelectronics
Linear Regulators - Standard 2A Positive Reg 7.9V Output 5V DG
Data Sheet
0-1800: $0.22
1800-2000: $0.18
2000-5000: $0.17
5000-10000: $0.16
