Product Summary

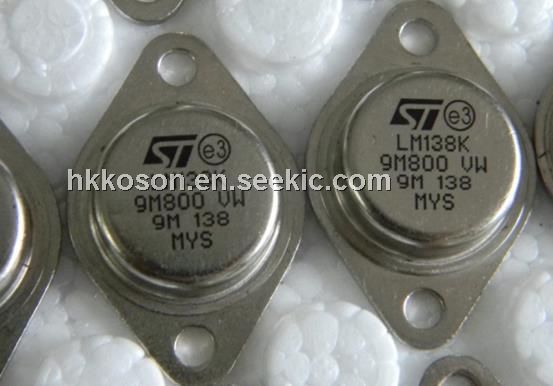

The LM138K is adjustable 3-terminal positive voltage regulators capable of supplying in excess of 5 A over a 1.2 V to 32 V
output range. It is exceptionally easy to use and require only 2 resistors to set the output voltage. Careful circuit design has
resulted in outstanding load and line regulation comparable to many commercial power supplies.
Parametrics
LM138K Parametrics:
Packaging
Tray
Regulator Topology
Positive Adjustable
Voltage - Output
1.2 V ~ 32 V
Current - Output
5A
Voltage - Dropout (Typical)
-
Number of Regulators
1
Voltage - Input
-
Current - Limit (Min)
7A
Operating Temperature
-55°C ~ 150°C
Mounting Type
Through Hole
Package / Case
TO-204AA, TO-3
Supplier Device Package
TO-3
Other Names
497-6706
LM138K-ND
Features
LM138K Features:
- Guaranteed 7 A peak output current
- Guaranteed 5 A output current
- Adjustable output down to 1.2 V
- Line regulation typically 0.005 %/V
- Load regulation typically 0.1 %
- Guaranteed thermal regulation
- Current limit constant with temperature
- Standard 3-lead transistor package

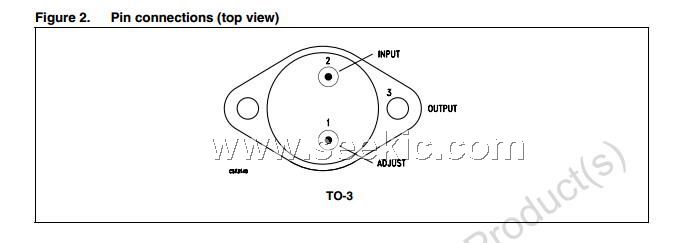

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM138K STEEL |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM138K-MIL |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM138KSTEEL |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
|
LM138KSTEEL/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
 |
LM138K STEEL/NOPB |
|
IC REG LDO ADJ 5A TO-3 |
Data Sheet |
|
|
||||||||||||
 |
LM138K |
STMicroelectronics |
Linear Regulators - Standard 1.2-32V Adj Positive |
Data Sheet |
|
|
||||||||||||
