Product Summary

The LM1881M is a high-performance Video Sync Separator.

Parametrics

LM1881M Parametrics:

Packaging Tube
Type Synchronous Separator
Applications NTSC, PAL
Mounting Type Surface Mount
Package/Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Dynamic Catalog Video Processing

Features

LM1881M Features:


  • AC Coupled Composite Input Signal
  • >10 kΩ Input Resistance
  • <10 mA Power Supply Drain Current
  • Composite Sync and Vertical Outputs
  • Odd/Even Field Output
  • Burst Gate/Back Porch Output
  • Horizontal Scan Rates to 150 kHz
  • Edge Triggered Vertical Output
  • Default Triggered Vertical Output for Non-standard Video Signal (Video Games Home Computers)

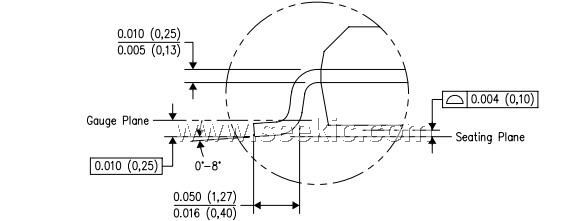

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM1881M
LM1881M
National Semiconductor (TI)
Video ICs
Data Sheet
0-380: $1.26
380-570: $1.10
570-1045: $0.88
1045-2565: $0.83
LM1881M/NOPB
LM1881M/NOPB
National Semiconductor (TI)
Special Purpose Amplifiers VIDEO SYNC SEPARATOR
Data Sheet
0-1: $1.76
1-25: $1.42
25-100: $1.29
100-250: $1.16
LM1881MX
LM1881MX
National Semiconductor (TI)
Video ICs
Data Sheet
0-2500: $0.83
2500-5000: $0.80
LM1881MX/NOPB
LM1881MX/NOPB
National Semiconductor (TI)
Special Purpose Amplifiers VIDEO SYNC SEPARATOR
Data Sheet
0-1: $1.89
1-25: $1.54
25-100: $1.39
100-250: $1.26
