Product Summary
The LM317AEMP is a high-performance Three-Terminal Adjustable Regulator.
Parametrics
LM317AEMP Parametrics:
Packaging
Tape & Reel (TR)
Regulator Topology
Positive Adjustable
Voltage - Output
1.2 V ~ 37 V
Current - Output
1A
Voltage - Dropout (Typical)
-
Number of Regulators
1
Voltage - Input
4.2 V ~ 37 V
Current - Limit (Min)
1.5A
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount

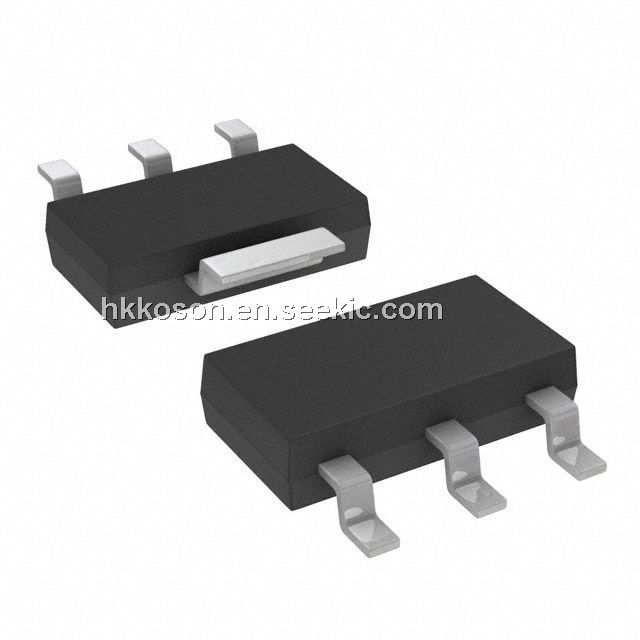

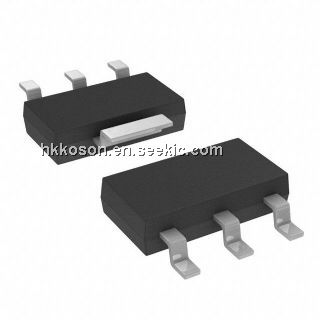

Package / Case
TO-261-4, TO-261AA
Supplier Device Package
SOT-223
Dynamic Catalog
> 20V(Max)
Other Names
LM317AEMPTR
Features
LM317AEMP Features:
? Specified 1% Output Voltage Tolerance
? Specified max. 0.01%/V Line Regulation
? Specified 1.5A Output Current
? Adjustable Output Down to 1.2V
? Current Limit Constant with Temperature
? P+Product Enhancement tested
? 80 dB Ripple Rejection
? Output is Short-Circuit Protected

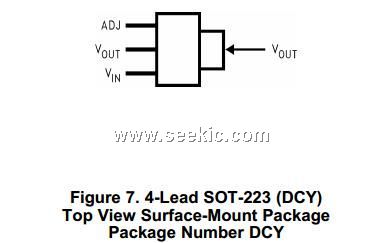

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM317AEMP |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
|
LM317AEMP/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard 3-TERMINAL ADJ REG |
Data Sheet |
|
|
||||||||||||
|
LM317AEMPX/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard 3-TERMINAL ADJ REG |
Data Sheet |
|
|
||||||||||||
 |
LM317AEMPX |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
