Product Summary

The LM317TG is a high-performance 1.5 A Adjustable Output,Positive Voltage Regulator.

Parametrics

LM317TG Parametrics:

Packaging Tube
Regulator Topology Positive Adjustable
Voltage - Output 1.2 V ~ 37 V
Current - Output 1.5A
Voltage - Dropout (Typical) -
Number of Regulators 1
Voltage - Input Up to 40V
Current - Limit (Min) 1.5A
Operating Temperature 0°C ~ 125°C
Mounting Type Through Hole

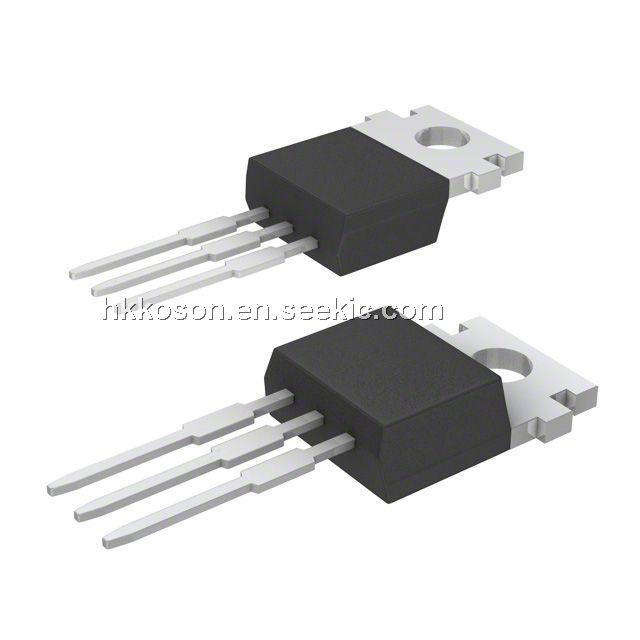

Package / Case TO-220-3
Supplier Device Package TO-220AB
Dynamic Catalog Positive Fixed and /or Adjustable
Other Names LM317TGOS

Features

LM317TG Features:


  • Output Current in Excess of 1.5 A
  • Output Adjustable between 1.2 V and 37 V
  • Internal Thermal Overload Protection
  • Internal Short Circuit Current Limiting Constant with Temperature
  • Output Transistor Safe?Area Compensation
  • Floating Operation for High Voltage Applications
  • Eliminates Stocking many Fixed Voltages
  • Pb?Free

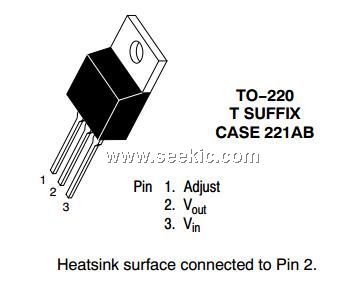

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM317TG
LM317TG
ON Semiconductor
Linear Regulators - Standard 1.5A ADJ 1.2-37V Positive
Data Sheet
0-1: $0.31
1-25: $0.26
25-100: $0.18
100-500: $0.15
