Product Summary
The LM358P is a high-performance Dual Operational Amplifier,
Parametrics
LM358P Parametrics:
Packaging
Tube
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
-
Slew Rate
0.3 V/μs
Gain Bandwidth Product
700kHz
-3db Bandwidth
-
Current - Input Bias
20nA
Voltage - Input Offset
3mV
Current - Supply
1mA
Current - Output / Channel
30mA
Voltage - Supply, Single/Dual (±)
3 V ~ 32 V, ±1.5 V ~ 16 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Through Hole

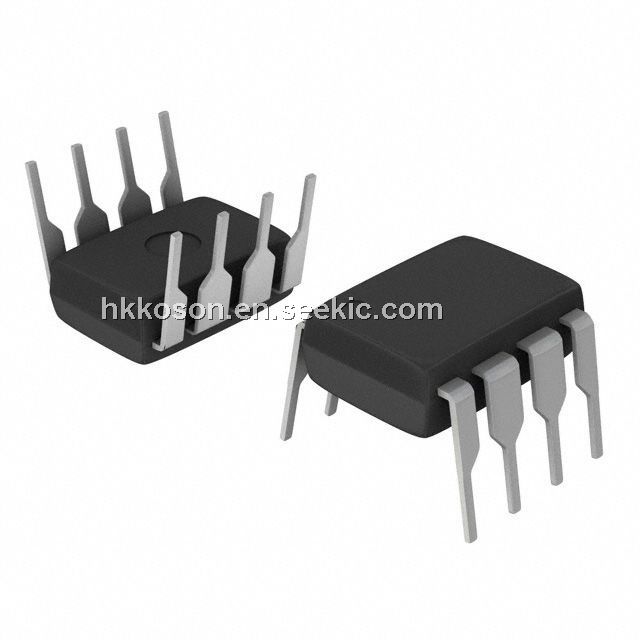

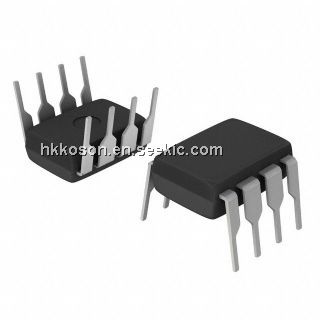

Package / Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-PDIP
Dynamic Catalog
General Purpose
Other Names
296-1395
296-1395-5
Features
LM358P Features:
? Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typ
? Wide Unity Gain Bandwidth: 0.7MHz
? Open-Loop Differential Voltage Gain: 100dB Typ
? Internal Frequency Compensation
? Internal Frequency Compensation
– Input Offset Voltage: 3 mV Typ
A Versions: 2 mV Typ
– Input Offset Current: 2 nA Typ
– Input Bias Current: 20 nA Typ
A Versions: 15 nA Typ

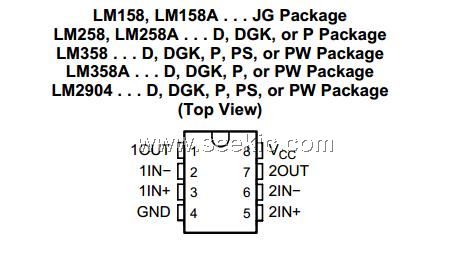

Diagrams
