Product Summary

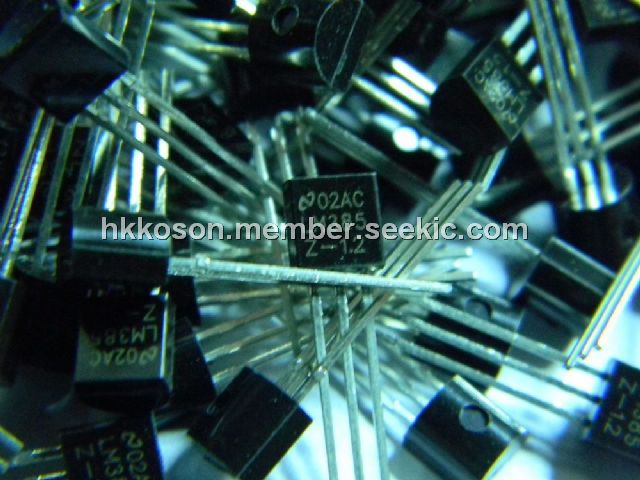

The LM385Z-1.2 is a Micropower Voltage Reference Diode. Operating over a 10 uA to 20 mA current range, the LM385Z-1.2 features exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Careful design of the LM385Z-1.2 has made the device exceptionally tolerant of capacitive loading, making it easy to use in almost any reference application.
Parametrics
LM385Z-1.2 absolute maximum ratings: (1)Reverse Current:30 mA; (2)Forward Current:10 mA; (3)Operating Temperature Range:0℃ to 70℃; (4)Storage Temperature:-55℃ to +150℃; (5)Soldering Information:260℃.
Features
LM385Z-1.2 features: (1)±4mV(±0.3%) max. initial tolerance (A grade); (2)Operating current of 10 μA to 20 mA; (3)0.6Ω max dynamic impedance (A grade); (4)Low temperature coefficient; (5)Low voltage reference—1.235V; (6)2.5V device and adjustable device also available; (7)LM185-2.5 series and LM185 series, respectively.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM385Z-1.2 |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
 |
LM385Z-1.2#PBF |
Linear Technology |
IC PREC VOLTAGE REF 1.2V TO-92-3 |
Data Sheet |
|
|
||||||||||||
|
LM385Z-1.2/NOPB |
National Semiconductor (TI) |
Voltage & Current References MICROPWR VLTG REF DIODE |
Data Sheet |
|
|
||||||||||||
 |
LM385Z-1.2/LFT4 |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
|
LM385Z-1.2/LFT3 |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
|
LM385Z-1.2#TRPBF |
Linear Technology |
IC PREC VOLTAGE REF 1.2V TO-92-3 |
Data Sheet |
|
|
||||||||||||
|
LM385Z-1.2G |
ON Semiconductor |
Voltage & Current References 1.2V 10uA-20mA |
Data Sheet |
|
|
||||||||||||
|
LM385Z-1.2RAG |
ON Semiconductor |
Voltage & Current References 1.2V 10uA-20mA |
Data Sheet |
|
|
||||||||||||
