Product Summary

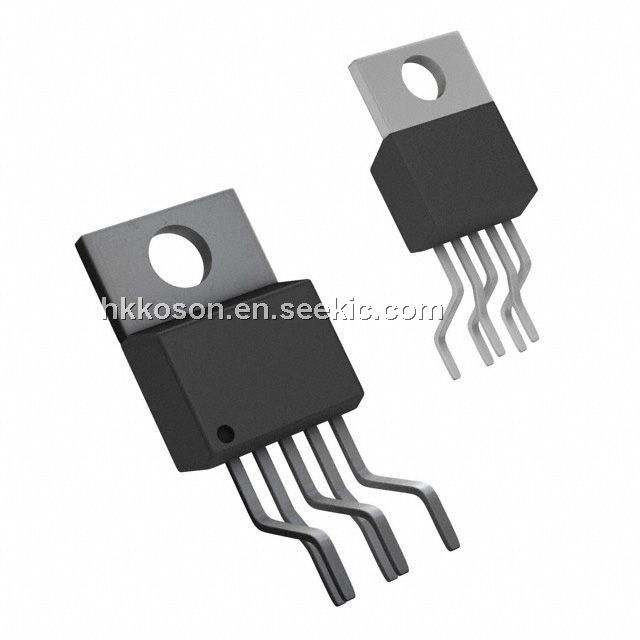

The LM675T is a high-performance Power Operational Amplifier.
Parametrics
LM675T Parametrics:
Packaging
Tube
Amplifier Type
Power
Number of Circuits
1
Output Type
-
Slew Rate
8 V/μs
Gain Bandwidth Product
5.5MHz
-3db Bandwidth
-
Current - Input Bias
200nA
Voltage - Input Offset
1mV
Current - Supply
18mA
Current - Output / Channel
4A
Voltage - Supply, Single/Dual (±)
10 V ~ 60 V, ±5 V ~ 30 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Through Hole
Package / Case
TO-220-5 Formed Leads
Supplier Device Package
TO-220-5
Dynamic Catalog
Power
Features
LM675T Features:
? 3A Current Capability
? AVO Typically 90 dB
? 5.5 MHz Gain Bandwidth Product
? 8 V/μs Slew Rate
? Wide Power Bandwidth 70 kHz
? 1 mV Typical Offset Voltage
? Short Circuit Protection
? Thermal Protection with Parole Circuit (100% Tested)
? 16V–60V Supply Range
? Wide Common Mode Range
? Internal Output Protection Diodes
? 90 dB Ripple Rejection
? Plastic Power Package TO-220

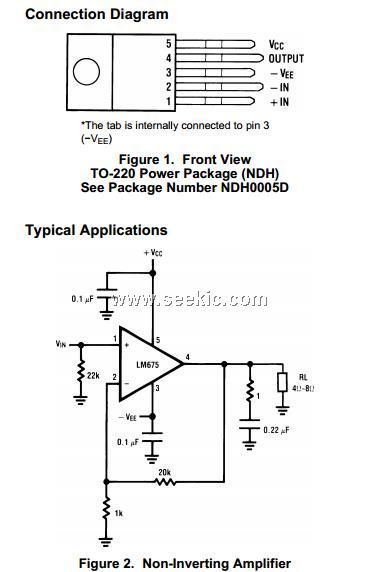

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM675T |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM675T/LB03 |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM675T/LF02 |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM675T/LF03 |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM675T/LF05 |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LM675T/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps Pwr Op Amp |
Data Sheet |
|
|
||||||||||||
