Product Summary
The LMC7660IMX is a high-performance
Parametrics
LMC7660IMX Parametrics:
Packaging
Tape & Reel (TR)
Type
Switched Capacitor (Charge Pump), Inverting
Output Type
Adjustable
Number of Outputs
1
Voltage - Output
-1.5 V ~ -10 V
Voltage - Input
1.5 V ~ 10 V
PWM Type
-
Frequency - Switching
10kHz
Current - Output
-
Synchronous Rectifier
No
Operating Temperature
-
Mounting Type
Surface Mount

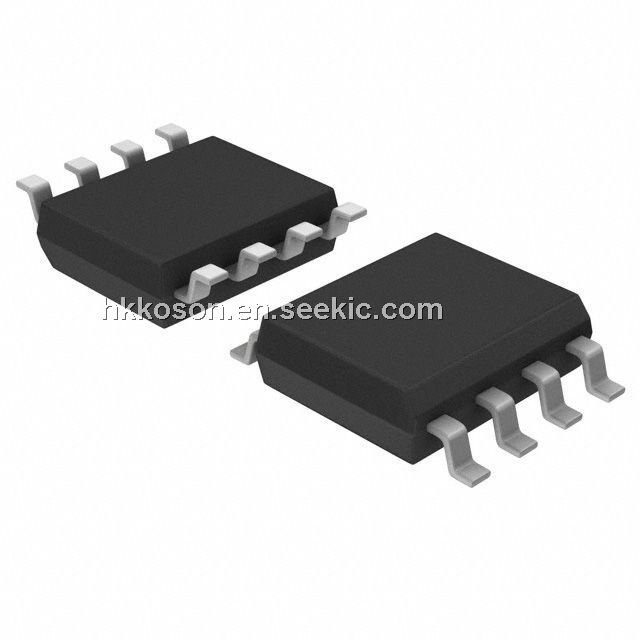

Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Other Names
LMC7660IMXTR
Features
LMC7660IMX Features:
? Operation Over Full Temperature and Voltage Range without an External Diode
? Low Supply Current, 200 μA Max
? Pin-for-pin Replacement for the 7660
? Wide Operating Range 1.5V to 10V
? 97% Voltage Conversion Efficiency
? 95% Power Conversion Efficiency
? Easy to Use, Only 2 External Components
? Extended Temperature Range
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMC7660IMX |
National Semiconductor (TI) |
Charge Pumps |
Data Sheet |
|
|
||||||||||||
 |
LMC7660IMX/NOPB |
National Semiconductor (TI) |
Charge Pumps SWITCHED CAPACITOR VOLTAGE CONVERTER |
Data Sheet |
|
|
||||||||||||
