Product Summary
The LMH6574MA is a high-performance High Speed Video Multiplexe.
Parametrics
LMH6574MA Parametrics:
Packaging
Tube
Function
Video Multiplexer
Circuit
1 x 4:1
On-State Resistance
-
Voltage Supply Source
Single, Dual Supply
Voltage - Supply, Single/Dual (±)
6 V ~ 12 V, ±3 V ~ 6 V
Current - Supply
13mA
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount

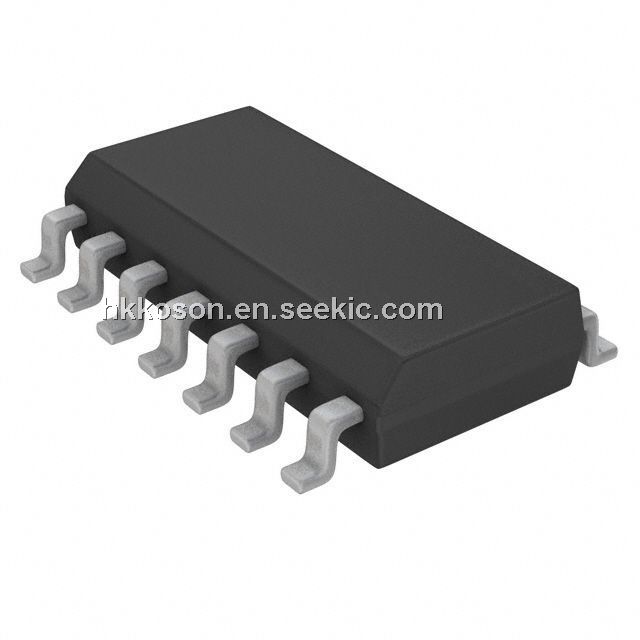

Package / Case
14-SOIC (0.154", 3.90mm Width)
Supplier Device Package
14-SOICN
Features
LMH6574MA Features:
? 500 MHz, 500 mV ?3 dB Bandwidth, AV = 2
? 400 MHz, 2VPP ?3 dB Bandwidth, AV = 2
? 8 ns Channel Switching Time
? 70 dB Channel to Channel Isolation @ 10 MHz
? 0.02%, 0.05° Diff. Gain, Phase
? 0.1 dB Gain Flatness to 150 MHz
? 2200 V/μs Slew Rate
? Wide Supply Voltage Range: 6V (±3V) to 12V (±6V)

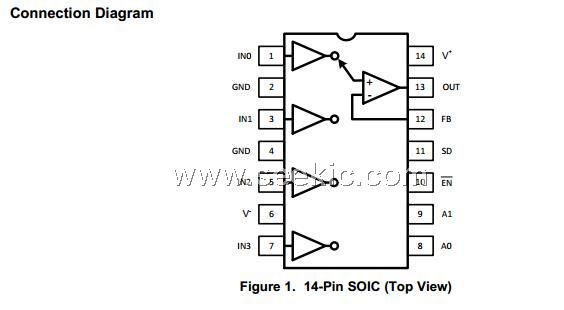

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMH6574MA |
National Semiconductor (TI) |
Multiplexer Switch ICs |
Data Sheet |
|
|
||||||||||||
 |
LMH6574MA/NOPB |
National Semiconductor (TI) |
Multiplexer Switch ICs High Speed 4:1 Mux |
Data Sheet |
|
|
||||||||||||
|
LMH6574MAX/NOPB |
National Semiconductor (TI) |
Multiplexer Switch ICs |
Data Sheet |
|
|
||||||||||||
|
LMH6574MAX |
National Semiconductor (TI) |
Multiplexer Switch ICs |
Data Sheet |
|
|
||||||||||||
