Product Summary
The LNK304GN is a high-performance Lowest Component Count, Energy-Ef?cient Off-Line Switcher IC,which is widely used for
Appliances and timers and LED drivers and industrial controls.
Parametrics
LNK304GN Parametrics:
Packaging
Tube
Output Isolation
Non-Isolated
Frequency Range
62kHz ~ 70kHz
Voltage - Input
-
Voltage - Breakdown
700V
Voltage - Output
-
Power (Watts)
12mW
Operating Temperature
-40°C ~ 150°C
Package/Case
8-SMD (7 Leads), Gull Wing
Supplier Device Package
SMD-8B
For Use With
Features
LNK304GN Features:
- Cost Effective Linear/Cap Dropper Replacement
- Much Higher Performance over Discrete Buck and Passive Solutions
Supports buck, buck-boost and ? yback topologies
System level thermal overload, output short-circuit and open control loop protection
Excellent line and load regulation even with typical con?guration
High bandwidth provides fast turn-on with no overshoot
Current limit operation rejects line ripple
Universal input voltage range (85 VAC to 265 VAC)
Built-in current limit and hysteretic thermal protection
Higher ef?ciency than passive solutions
Higher power factor than capacitor-fed solutions
Entirely manufacturable in SMD
- EcoSmart?– Extremely Energy Ef?cient

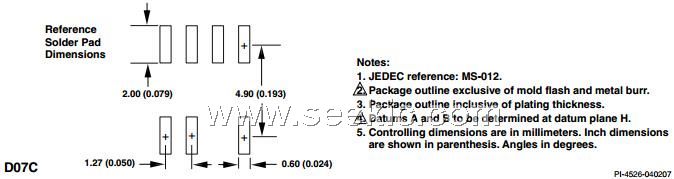

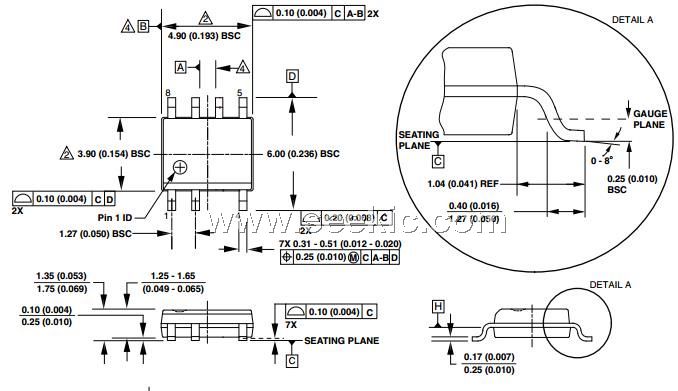

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LNK304GN |
Power Integrations |
AC/DC Switching Converters 120mA MDCM 170mA CCM |
Data Sheet |
|
|
||||||||||||
|
LNK304GN-TL |
Power Integrations |
AC/DC Switching Converters 120mA MDCM 170mA CCM |
Data Sheet |
|
|
||||||||||||
