Product Summary

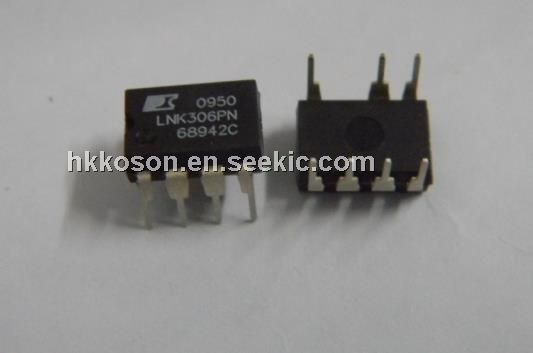

The LNK306PN is speci?cally designed to replace all linear and capacitor-fed (cap dropper) non-isolated power supplies in the
under 360 mA output current range at equal system cost while offering much higher performance and energy ef? ciency.
Parametrics
LNK306PN Parametrics:
Packaging
Tube
Output Isolation
Non-Isolated
Frequency Range
62kHz ~ 70kHz
Voltage - Input
-
Voltage - Breakdown
700V
Voltage - Output
-
Power (Watts)
12mW
Operating Temperature
-40°C ~ 150°C

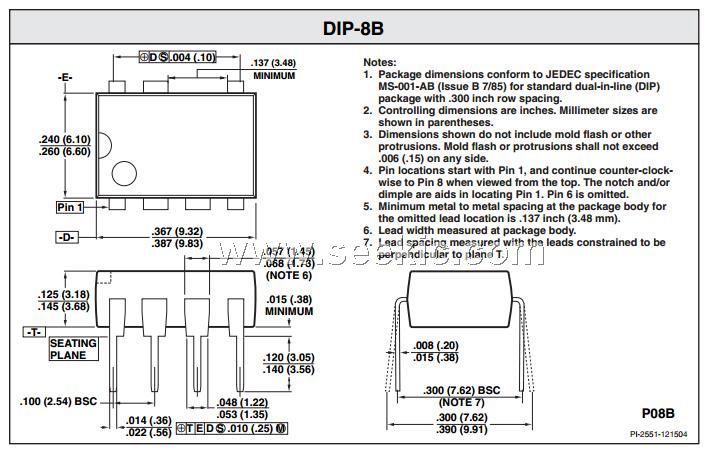

Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
DIP-8B
Dynamic Catalog
AC DC Converters, Offline Switchers
Other Names
596-1027-5
Features
LNK306PN Features:
- Cost Effective Linear/Cap Dropper Replacement
- Much Higher Performance over Discrete Buck and Passive Solutions
Supports buck, buck-boost and ? yback topologies
System level thermal overload, output short-circuit and open control loop protection
Excellent line and load regulation even with typical con?guration
High bandwidth provides fast turn-on with no overshoot
Current limit operation rejects line ripple
Universal input voltage range (85 VAC to 265 VAC)
Built-in current limit and hysteretic thermal protection
Higher ef? ciency than passive solutions
Higher power factor than capacitor-fed solutions
- EcoSmart?– Extremely Energy Ef?cient
- Applications
Appliances and timers
LED drivers and industrial controls
