Product Summary
The LT1085CM devices are pin compatible with older 3-terminal regulators. A 10μF output capacitor is required on these new
devices. However, this is included in most regulator designs.
Parametrics
LT1085CM Parametrics:
Packaging
Tube
Regulator Topology
Positive Adjustable
Voltage - Output
1.25 V ~ 28.5 V
Current - Output
3A
Voltage - Dropout (Typical)
1.3V @ 3A
Number of Regulators
1
Voltage - Input
2.55 V ~ 30 V
Current - Limit (Min)
3.2A
Operating Temperature
0°C ~ 125°C
Mounting Type
Surface Mount
Package/Case
TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Supplier Device Package
D2PAK-3
Features
LT1085CM Features:
- 3-Terminal Adjustable
- Output Current of 3A, 5A or 7.5A
- Operates Down to 1V Dropout
- Guaranteed Dropout Voltage at Multiple Current Levels
- Line Regulation: 0.015%
- Load Regulation: 0.1%
- 100% Thermal Limit Functional Test
- Fixed Versions Available

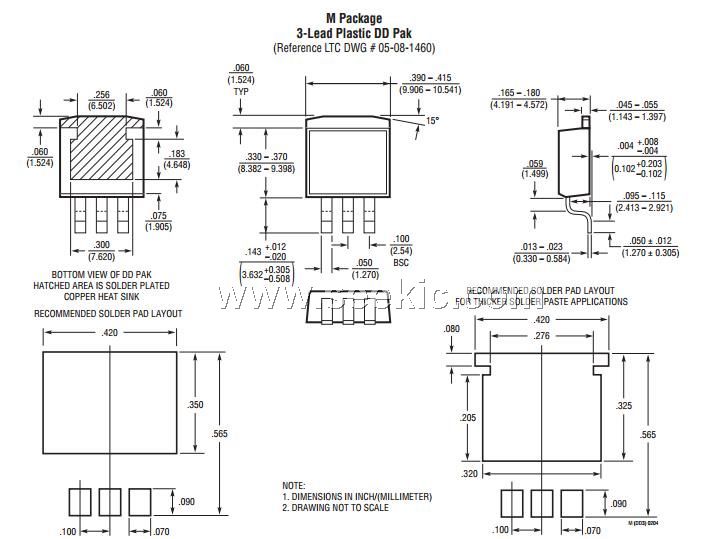

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1085CM |
|
IC REG LDO ADJ 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
|
LT1085CM#PBF |
|
IC REG LDO ADJ 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
|
LT1085CM#TR |
|
IC REG LDO ADJ 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
|
LT1085CM#TRPBF |
|
IC REG LDO ADJ 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
|
LT1085CM-3.3#PBF |
|
IC REG LDO 3.3V 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
|
LT1085CM-3.3 |
|
IC REG LDO 3.3V 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
|
LT1085CM-3.3#TR |
|
IC REG LDO 3.3V 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
|
LT1085CM-3.3#TRPBF |
|
IC REG LDO 3.3V 3A DDPAK-3 |
Data Sheet |
|
|
||||||||||
