Product Summary
The MAX3078EESA is a high-performance Interface IC.
Parametrics
MAX3078EESA Parametrics:
Packaging
Tube
Type
Transceiver
Protocol
RS422, RS485
Number of Drivers/Receivers
1/1
Duplex
Half
Receiver Hysteresis
100mV
Data Rate
16Mbps
Voltage - Supply
3 V ~ 3.6 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
RS-422, RS-485 Transceivers
Features
MAX3078EESA Features:
? 3.3V Operation
? Electrostatic Discharge (ESD) Protection for RS-485 I/O Pins ±15kV Human Body Model
? True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility
? Hot-Swap Input Structure on DE and RE
? Allow Up to 256 Transceivers on the Bus
? Available in Industry-Standard 8-Pin SO Package

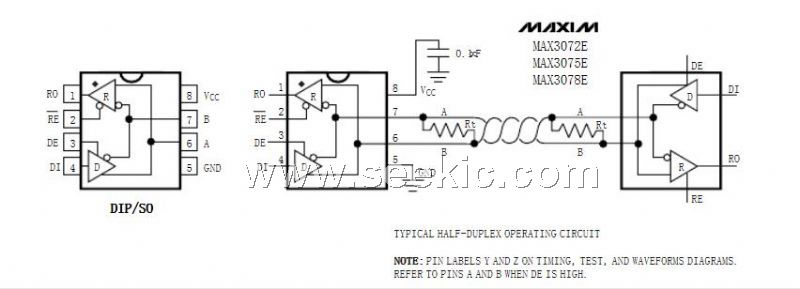

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3078EESA |
Maxim Integrated Products |
RS-422/RS-485 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX3078EESA+ |
Maxim Integrated Products |
RS-422/RS-485 Interface IC 3.3V Fl-Sfe/Ht-Swp RS-485/RS-422 Tcvr |
Data Sheet |
|
|
||||||||||||
|
MAX3078EESA+T |
Maxim Integrated Products |
RS-422/RS-485 Interface IC 3.3V Fl-Sfe/Ht-Swp RS-485/RS-422 Tcvr |
Data Sheet |
|
|
||||||||||||
|
MAX3078EESA-T |
Maxim Integrated Products |
RS-422/RS-485 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
