Product Summary
The MC33274ADG operational amplifiers are quality fabricated with innovative Bipolar design concepts.
Parametrics
MC33274ADG Parametrics:
| Packaging | Tube |
|---|---|
| Amplifier Type | General Purpose |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 10 V/μs |
| Gain Bandwidth Product | 24MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 300nA |
| Voltage - Input Offset | 100μV |
| Current - Supply | 2.15mA |
| Current - Output / Channel | 37mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 36 V, ±1.5 V ~ 18 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package/Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOICN |
| Dynamic Catalog |
General Purpose |
Features
MC33274ADG Features:
- Input Offset Voltage Trimmed to 100 V (Typ)
- Low Input Bias Current: 300 nA
- Low Input Offset Current: 3.0 nA
- High Input Resistance: 16 M
- Low Noise: 18 nV/ √ Hz @ 1.0 kHz
- High Gain Bandwidth Product: 24 MHz @ 100 kHz
- High Slew Rate: 10 V/s
- Power Bandwidth: 160 kHz
- Excellent Frequency Stability
- Unity Gain Stable: w/Capacitance Loads to 500 pF
- Large Output Voltage Swing: +14.1 V/ ?14.6 V
- Low Total Harmonic Distortion: 0.003%
- Power Supply Drain Current: 2.15 mA per Amplifier
- Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V
- ESD Diodes Provide Added Protection to the Inputs
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
- Pb?Free Packages are Available

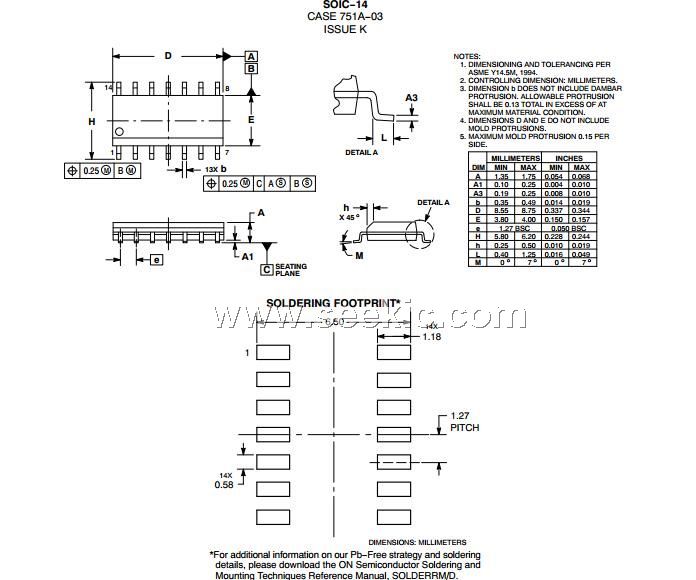

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33274ADG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Quad Low Noise Low VIO Ind. Temp |
