Product Summary
The MC68HC908QT1CP is a high-poerformance Microcontroller.
Parametrics
MC68HC908QT1CP Parametrics:
Packaging
Tube
Core Processor
HC08
Core Size
8-Bit
Speed
8MHz
Connectivity
-
Peripherals
LVD, POR, PWM
Number of I /O
5
Program Memory Size
1.5KB (1.5K x 8)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
128 x 8
Voltage - Supply (Vcc/Vdd)
2.7 V ~ 5.5 V
Data Converters
-
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C
Package / Case

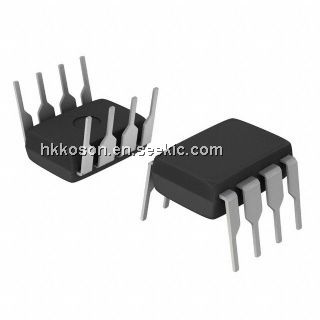

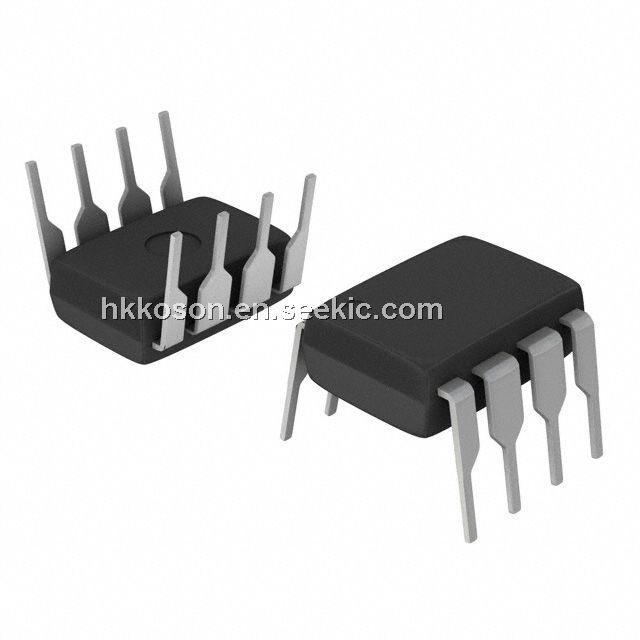

8-DIP (0.300", 7.62mm)
Features
MC68HC908QT1CP Features:
? 5-V and 3-V operating voltages (VDD)
? 8-MHz internal bus operation at 5 V, 4-MHz at 3 V
? Trimmable internal oscillator
– 3.2 MHz internal bus operation
– 8-bit trim capability allows 0.4% accuracy(1)
– ± 25% untrimmed
? Auto wakeup from STOP capability
? Configuration (CONFIG) register for MCU configuration options, including:
– Low-voltage inhibit (LVI) trip point
? In-system FLASH programming
? FLASH security(2)

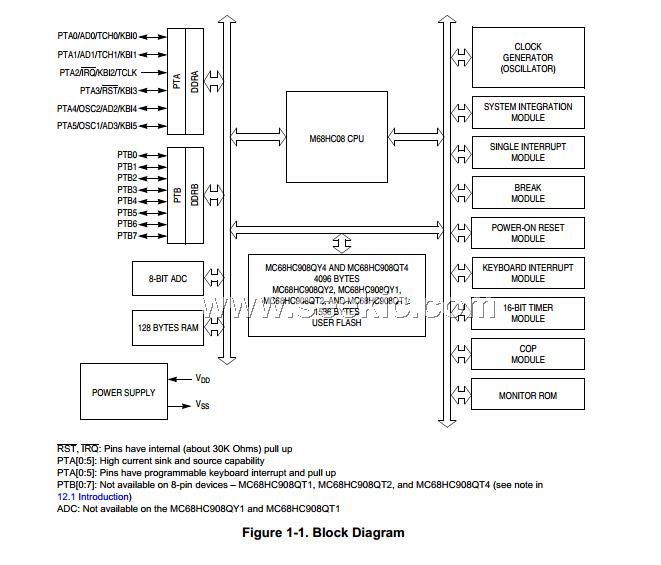

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC908QT1CP |
|
IC MCU 1.5K FLASH 8-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC68HC908QT1CPE |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 1.5K FLASH W/O ADC |
Data Sheet |
|
|
||||||||||||
