Product Summary
The MSP430F2012IPWR is a high-performance MIXED SIGNAL MICROCONTROLLER.
Parametrics
MSP430F2012IPWR Parametrics:
Packaging
Tape & Reel (TR)
Core Processor
-
Core Size
16-Bit
Speed
16MHz
Connectivity
I2C, SPI
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Number of I /O
10
Program Memory Size
2KB (2K x 8 + 256B)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
128 x 8
Voltage - Supply (Vcc/Vdd)
1.8 V ~ 3.6 V
Data Converters
A/D 8x10b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C
Package / Case

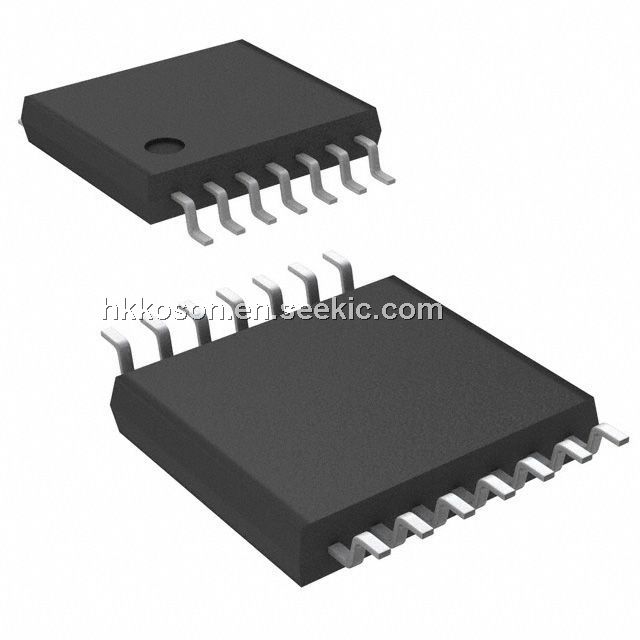

14-TSSOP (0.173", 4.40mm Width)
Dynamic Catalog
MSP430F2xx
For Use With
Other Names
296-19731-2
Features
MSP430F2012IPWR Features:
- Low Supply Voltage Range 1.8 V to 3.6 V
- Ultra-Low Power Consumption
– Active Mode: 220 μA at 1 MHz, 2.2 V
– Standby Mode: 0.5 μA
– Off Mode (RAM Retention): 0.1 μA
- Five Power-Saving Modes
- Ultra-Fast Wake-Up From Standby Mode in Less Than 1 μs
- 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
- Basic Clock Module Configurations:
– Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%
– Internal Very Low-Power Low-Frequency Oscillator
– 32-kHz Crystal
– External Digital Clock Source
- 16-Bit Timer_A With Two Capture/Compare Registers
- Brownout Detector
- On-Chip Emulation Logic With Spy-Bi-Wire Interface
-
Family Members:2KB + 256B Flash Memory

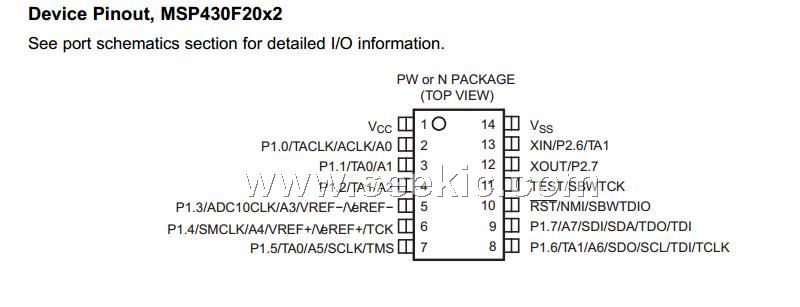

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430F2012IPWR |
Texas Instruments |
16-bit Microcontrollers (MCU) 16-Bit Ultra Low Pwr 1kB Flash 2kB RAM |
