Product Summary

The NC7SZ04M5X is a high-performance TinyLogic?UHS Inverter.

Parametrics

NC7SZ04M5X Parametrics:

Packaging Tape & Reel (TR)
Logic Type Inverter, Buffer
Number of Circuits 1
Number of Inputs 1
Features -
Voltage - Supply 1.65 V ~ 5.5 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low -
Logic Level - High -
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount

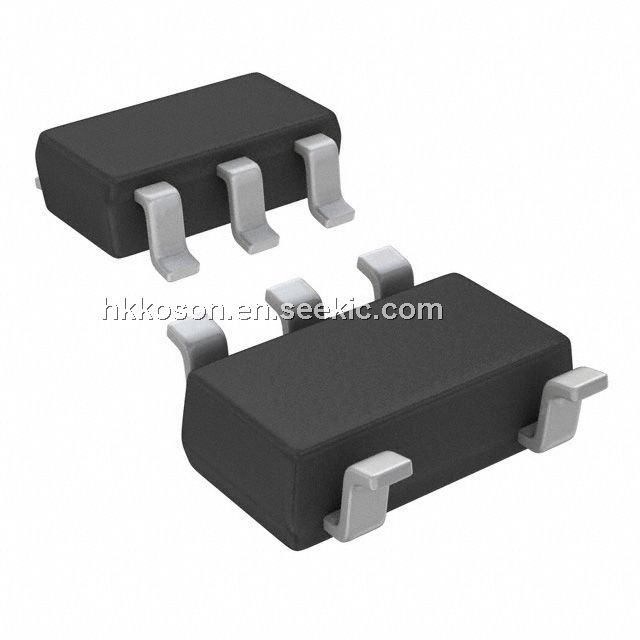

Supplier Device Package SOT-23-5
Package / Case SC-74A, SOT-753
Dynamic Catalog 7SZ
Other Names NC7SZ04M5XTR

Features

NC7SZ04M5X Features:


  • Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC
  • High Output Drive: ±24mA at 3V VCC
  • Broad VCC Operating Range: 1.65V to 5.5V
  • Matches Performance of LCX when Operated at 3.3V VCC
  • Power Down High Impedance Inputs/Outputs
  • Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
  • Proprietary Noise/EMI Reduction Circuitry

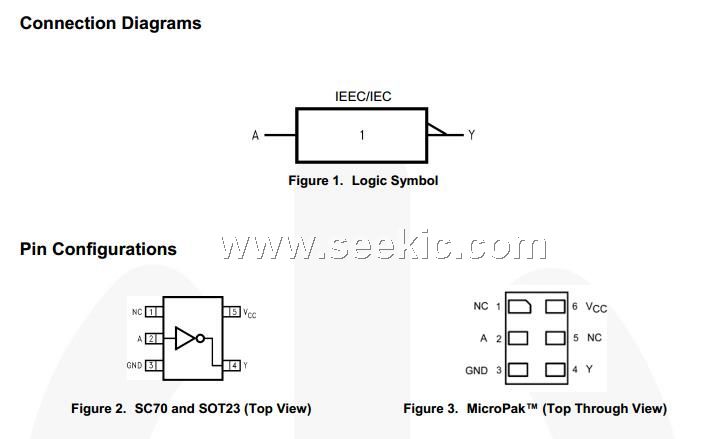

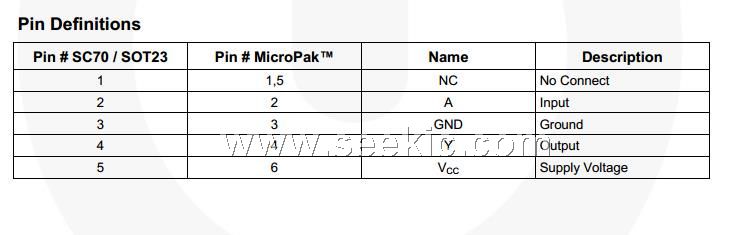

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NC7SZ04M5X
NC7SZ04M5X
Fairchild Semiconductor
Inverters UHS Inverter
Data Sheet
0-1: $0.21
1-25: $0.16
25-100: $0.12
100-250: $0.09
NC7SZ04M5X_Q
NC7SZ04M5X_Q
Fairchild Semiconductor
Inverters UHS Inverter
Data Sheet
Negotiable
