Product Summary

The NCP1606BDR2G is a Cost Effective Power Factor Controller.

Parametrics

NCP1606BDR2G Parametrics:

Packaging Tape & Reel (TR)
Mode Critical Conduction (CRM)
Frequency - Switching -
Current - Startup 20μA
Voltage - Supply 10.3 V ~ 20 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount

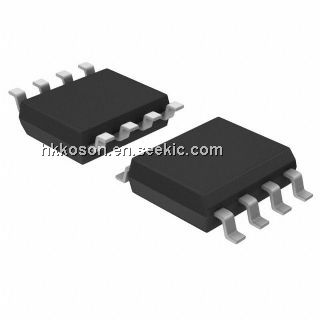

Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC N
Dynamic Catalog PFC (Power Factor Correction)
For Use With
NCP1606BOOSTGEVBOS-ND - EVAL BOARD FOR NCP1606BOOSTG
Other Names NCP1606BDR2GOSTR

Features

NCP1606BDR2G Features:

General Features
? “Unity” Power Factor
? No Need for Input Voltage Sensing
? Latching PWM for Cycle by Cycle On Time Control (Voltage Mode)
? High Precision Voltage Reference (±1.6% over temperature ranges)
? Very Low Startup Current Consumption (≤ 40 A)
? Low Typical Operating Current (2.1 mA)
? ?500 mA / +800 mA Totem Pole Gate Driver
? Undervoltage Lockout with Hysteresis
? Pin to Pin Compatible with Industry Standards
Safety Features
? Programmable Overvoltage Protection
? Protection against Open Loop (Undervoltage Protection)
? Accurate and Programmable On Time Limitation
? Overcurrent Limitation

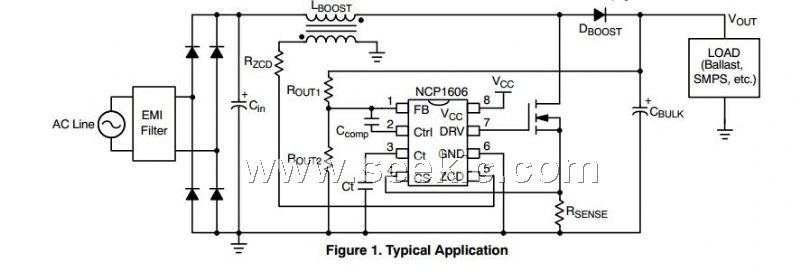

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NCP1606BDR2G
NCP1606BDR2G
ON Semiconductor
Other Power Management PWR FCTR CONTROLLER
Data Sheet
0-1: $0.68
1-25: $0.59
25-100: $0.47
100-500: $0.43
