Product Summary

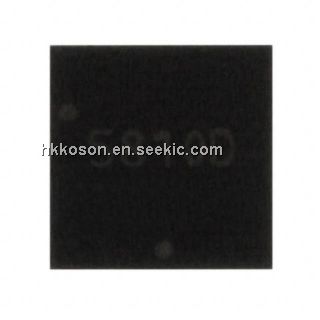

The NCP5810DMUTXG is a high-performance Dual 1 W Output AMOLED Driver Supply.
Parametrics
NCP5810DMUTXG Parametrics:
Packaging
Tape & Reel (TR)
Display Type
AMOLED
Configuration
Display Matrix
Interface
-
Digits or Characters
-
Current - Supply
1.5mA
Voltage - Supply
2.7 V ~ 4.6 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
12-UFDFN Exposed Pad
Supplier Device Package
12-UDFN (3x3)
For Use With
Other Names
NCP5810DMUTXGOSTR
Features
NCP5810DMUTXG Features;
?High Overall Efficiency: 83% (Refer to Figure 4)
?Low Noise 1.75 MHz PWM DC/DC Converter
?Positive Output Fixed + 4.6 V
?Negative Output from - 2.0 to - 15.0 V
?High Output Voltage Accuracy
?Excellent Line Transient Rejection
?Soft Start to Limit Inrush Current
?Enable Control Facility with True-Cutoff
?Out-of-Regulation Protection
?Small UDFN 3x3 mm Packages
?These are Pb-Free Devices

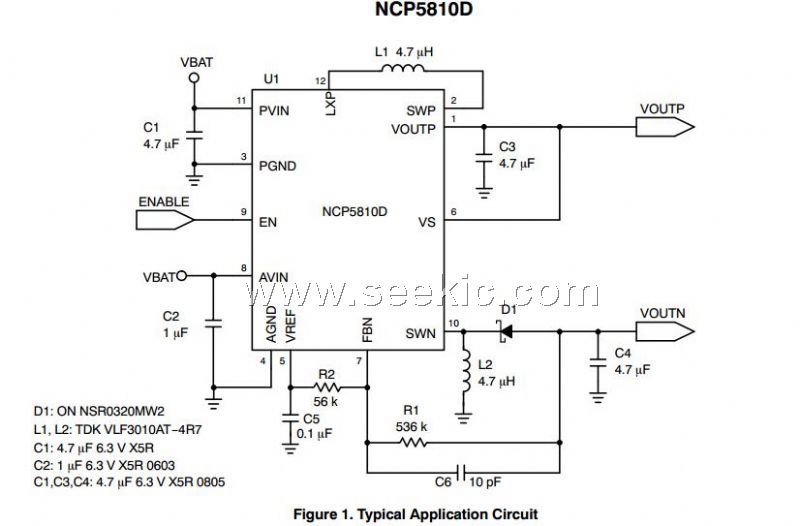

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP5810DMUTXG |
ON Semiconductor |
DC/DC Switching Controllers DUAL AMOLED DRVR |
Data Sheet |
Negotiable |
|
||||||||||||
