Product Summary
The OP213FSZ is a high-performance Low Noise, Low Drift Single-Supply Operational Amplifiers.
Parametrics
OP213FSZ Parametrics:
Packaging
Tube
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
1.2 V/μs
Gain Bandwidth Product
3.4MHz
-3db Bandwidth
-
Current - Input Bias
240nA
Voltage - Input Offset
250μV
Current - Supply
3mA
Current - Output / Channel
40mA
Voltage - Supply, Single/Dual (±)
4 V ~ 36 V, ±2 V ~ 18 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
General Purpose
Features
OP213FSZ Features:
- Single- or dual-supply operation
- Low noise: 4.7 nV/√Hz @ 1 kHz
- Wide bandwidth: 3.4 MHz
- Low offset voltage: 100 μV
- Very low drift: 0.2 μV/°C
- Unity gain stable
- No phase reversal

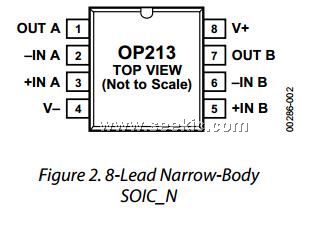

Diagrams
