Product Summary
The OP4177ARZ is a high-performance Precision Low Noise, Low Input Bias Current Operational Amplifiers.
Parametrics
OP4177ARZ Parametrics:
| Packaging | Tube |
|---|---|
| Amplifier Type | General Purpose |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 0.7 V/μs |
| Gain Bandwidth Product | 1.3MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 500pA |
| Voltage - Input Offset | 15μV |
| Current - Supply | 400μA |
| Current - Output / Channel | 10mA |
| Voltage - Supply, Single/Dual (±) | 5 V ~ 36 V, ±2.5 V ~ 18 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

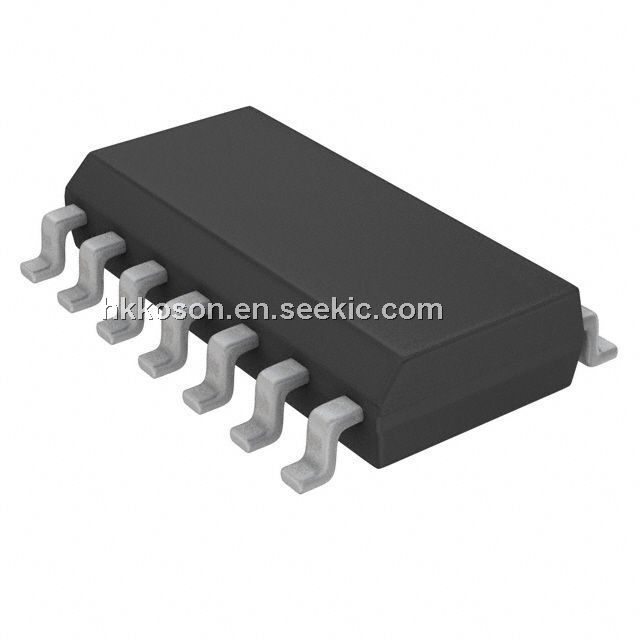

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Dynamic Catalog | General Purpose |
Features
OP4177ARZ Features:
- Low offset voltage: 60 μV maximum
- Very low offset voltage drift: 0.7 μV/°C maximum
- Low input bias current: 2 nA maximum
- Low noise: 8 nV/√Hz typical
- CMRR, PSRR, and AVO > 120 dB minimum
- Low supply current: 400 μA per amplifier
- Dual supply operation: ±2.5 V to ±15 V
- Unity-gain stable
- No phase reversal
- Inputs internally protected beyond supply voltage
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP4177ARZ |
|
IC OPAMP GP 1.3MHZ QUAD 14SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP4177ARZ-REEL |
|
IC OPAMP GP 1.3MHZ QUAD 14SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP4177ARZ-REEL7 |
|
IC OPAMP GP 1.3MHZ QUAD 14SOIC |
Data Sheet |
|
|
||||||||||||||||||
