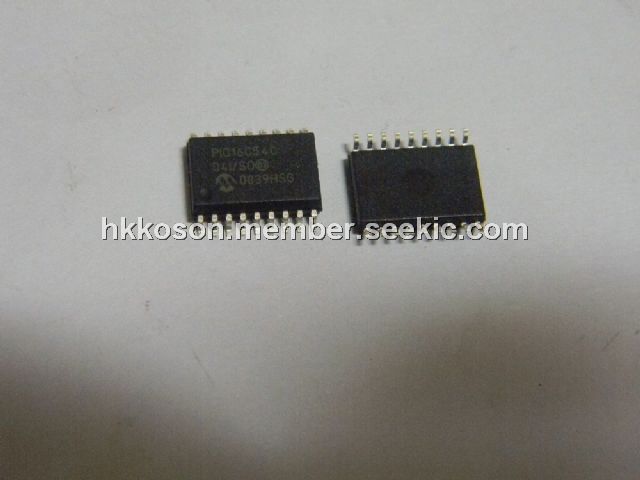

PIC16C54C-04I/SO

Product Summary

The PIC16C54C-04I/SO is a low cost, high performance, 8-bit fully static, EPROM/ROM-based CMOS microcontroller. It employs a RISC architecture with only 33 single word/ single cycle instructions. All instructions are single cycle except for program branches which take two cycles. The PIC16C54C-04I/SO delivers performance in an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly. The PIC16C54C-04I/SO fits perfectly in applications ranging from high speed automotive and appliance motor control to low power remote transmitters/receivers, pointing devices and telecom processors.

Parametrics

PIC16C54C-04I/SO absolute maximum ratings: (1)Ambient Temperature under bias: –55 to +125℃; (2)Storage Temperature:–65 to +150℃; (3)Voltage on VDD with respect to VSS: 0V to +7.5V; (4)Voltage on MCLR with respect to VSS: 0V to +14V; (5)Voltage on all other pins with respect to VSS:–0.6V to (VDD + 0.6V); (6)Total power dissipation: 800 mW; (7)Max. current out of VSS pin: 150 mA; (8)Max. current into VDD: 100 mA; (9)Max. current into an input pin (T0CKI only): ±500 μA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Max. output current sunk by any I/O pin: 25 mA; (13)Max. output current sourced by any I/O pin: 20 mA; (14)Max. output current sourced by a single I/O port (PORTA, B or C): 40 mA; (15)Max. output current sunk by a single I/O port (PORTA, B or C): 50 mA.

Features

PIC16C54C-04I/SO features: (1)8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler; (2)Power-on Reset (POR); (3)Device Reset Timer (DRT); (4)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (5)Programmable Code Protection; (6)Power saving SLEEP mode; (7)12-bit wide instructions; (8)8-bit wide data path; (9)Seven or eight special function hardware registers; (10)Two-level deep hardware stack; (11)Direct, indirect and relative addressing modes for data and instructions.

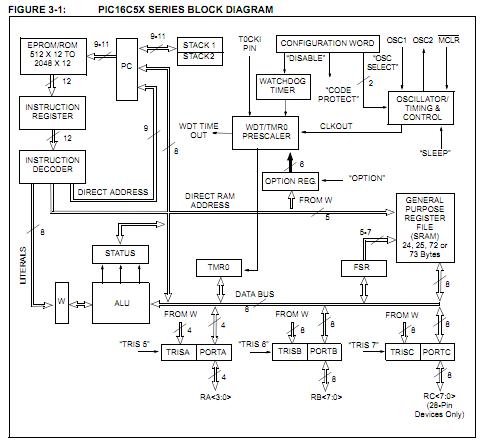

Diagrams
