Product Summary

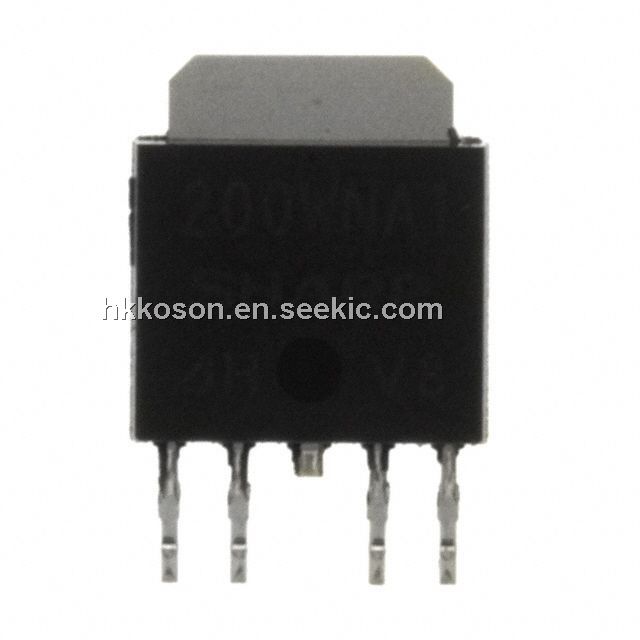

The PQ200WNA1ZPH is a high-performance,Compact Surface Mount type, Low Power-Loss Voltage Regulator.
Parametrics
PQ200WNA1ZPH Parametrics:
Packaging
Tape & Reel (TR)
Regulator Topology
Positive Adjustable
Voltage - Output
3 V ~ 20 V
Current - Output
1A
Voltage - Dropout (Typical)
-
Number of Regulators
1
Voltage - Input
3.5 V ~ 24 V
Current - Limit (Min)
-
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount

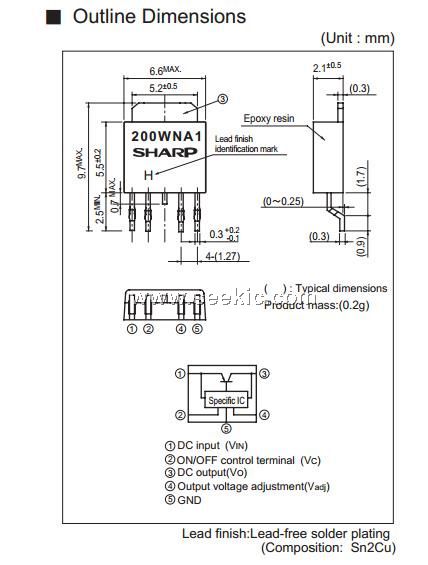

Package / Case
TO-252-5, Dpak (4 Leads + Tab)
Supplier Device Package
SC-63
Other Names
425-2678-2
PQ200WNA1ZPH-ND
Features
PQ200WNA1ZPH Features:
1.Output current : 1A
2.High isolation voltage VIN:MAX.24 V
3.Low dissipation current
(Dissipation current at no load: MAX. 8mA
Output OFF-state dissipation current: MAX.5μA)
4.Built-in ON/OFF function
5.Built-in overcurrent and overheat protection functions
6.Built-in ASO protection function
7.Ceramic capacitor compatible
8.RoHS directive compliant
