Product Summary
The SN65HVD11DR is a high-performance 3.3-V RS-485 TRANSCEIVER.
Parametrics
SN65HVD11DR Parametrics:
Packaging
Tape & Reel (TR)
Type
Transceiver
Protocol
RS485
Number of Drivers/Receivers
1/1
Duplex
Half
Receiver Hysteresis
35mV
Data Rate
10Mbps
Voltage - Supply
3 V ~ 3.6 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case

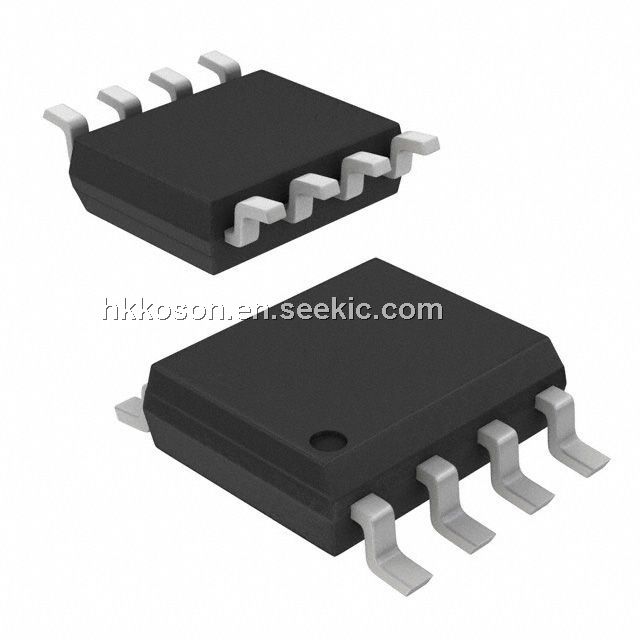

8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Dynamic Catalog
RS-485 Transceivers
Other Names
296-31717-2
SN65HVD11DR-ND
Features
SN65HVD11DR Features:
? Operates With a 3.3-V Supply
? Bus-Pin ESD Protection Exceeds 16 kV HBM
? 1/8 Unit-Load Option Available (Up to 256Nodes on the Bus)
? Meets or Exceeds the Requirements of ANSI TIA/EIA-485-A
? Bus-Pin Short Circuit Protection From –7 V to 12 V
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65HVD11DRG4 |
Texas Instruments |
Buffers & Line Drivers 3.3V Differential Transceivers |
Data Sheet |
|
|
||||||||||||
 |
SN65HVD11DRG |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SN65HVD11DR |
Texas Instruments |
Buffers & Line Drivers 3.3V Differential Transceivers |
Data Sheet |
|
|
||||||||||||
