Product Summary

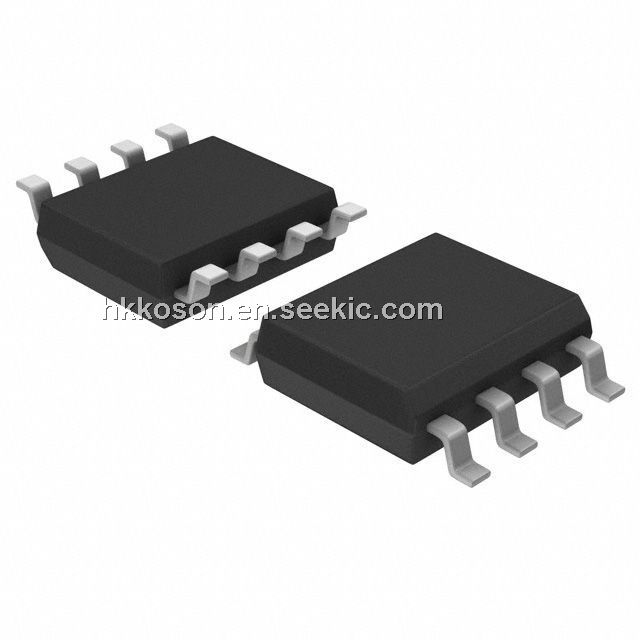

The SN65HVD255D is a high-performance 'Turbo' CAN Transceivers for Higher Data Rates and Large Networks Including
Features for Functional Safety.
Parametrics
SN65HVD255D Parametrics:
Packaging
Tube
Type
Transceiver
Protocol
CAN
Number of Drivers/Receivers
1/1
Duplex
Half
Receiver Hysteresis
200mV
Data Rate
1Mbps
Voltage - Supply
4.5 V ~ 5.5 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Dynamic Catalog
CAN Transceivers
Other Names
296-30151-5
Features
SN65HVD255D Features:
- Characterized for –40°C to 125°C Operation
- Protection Features
– HBM ESD Protection Exceeds ±12kV
– Bus Fault Protection –27V to 40V
– Undervoltage Protection on Supply Pins
– Driver Dominant Time Out (TXD DTO)
– Thermal Shutdown Protection
- Ideal Passive Behavior When Unpowered
– Bus and Logic Pins are High Impedance (no load)
– Power Up/Down With Glitch Free Operation On Bus
- I/O Voltage Range Supports 3.3V and 5V MCUs
- Meets the Requirements of ISO11898-2
- 'Turbo' CAN:
– Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin
– Higher Data Rates in CAN Networks
