Product Summary

The SN74HC245N is a high-performance Logic IC.

Parametrics

SN74HC245N Parametrics:

Packaging   Tube
Logic Type Transceiver, Non-Inverting
Number of Elements 1
Number of Bits per Element 8
Current - Output High, Low 7.8mA, 7.8mA
Voltage - Supply 2 V ~ 6 V
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-PDIP
Dynamic Catalog 74HC
Other Names 296-1584
296-1584-5

Features

SN74HC245N Features:

 Wide Operating Voltage Range of 2 V to 6 V
 High-Current 3-State Outputs Drive Bus

-Lines Directly or Up To 15 LSTTL Loads

 Low Power Consumption, 80-μA Max ICC

 Typical tpd = 12 ns

 ±6-mA Output Drive at 5 V

 Low Input Current of 1 μA Max

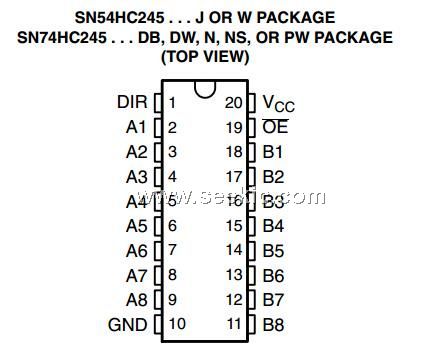

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

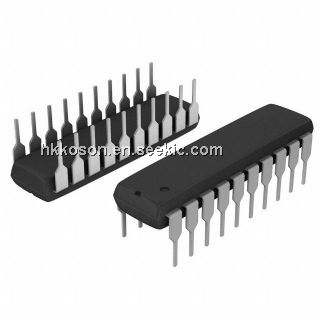

SN74HC245N
SN74HC245N
Texas Instruments
Bus Transceivers Tri-State Octal Bus
Data Sheet
0-1: $0.28
1-25: $0.24
25-100: $0.18
100-250: $0.18
