Product Summary
The SN74LVC06ADR is a high-performance HEX INVERTER BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT.
Parametrics
SN74LVC06ADR Parametrics:
Packaging
Tape & Reel (TR)
Logic Type
Inverter, Buffer
Number of Circuits
6
Number of Inputs
1
Features
Open Drain
Voltage - Supply
1.65 V ~ 3.6 V
Current - Quiescent (Max)
1μA
Current - Output High, Low
-, 24mA
Logic Level - Low
0.7 V ~ 0.8 V
Logic Level - High
1.7 V ~ 2 V
Max Propagation Delay @ V, Max CL
3.5ns @ 3.3V, 50pF
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Supplier Device Package

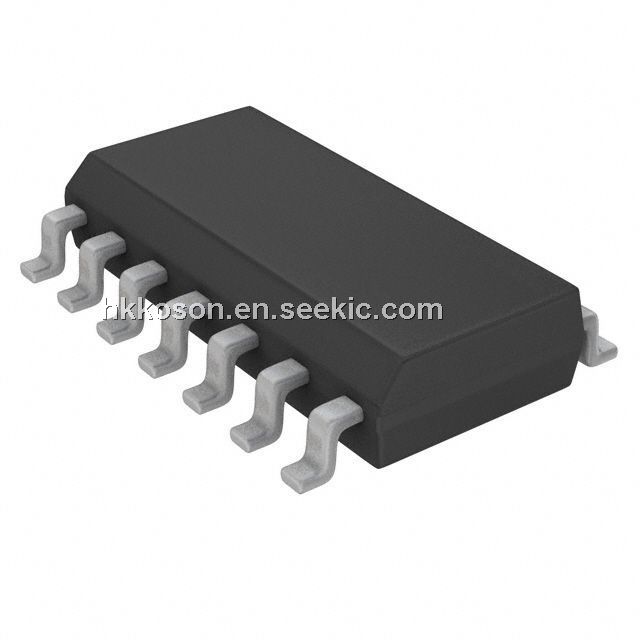

14-SOIC
Package / Case
14-SOIC (0.154", 3.90mm Width)
Dynamic Catalog
74LVC
Other Names
296-14905-2
Features
SN74LVC06ADR Features:
? Operate From 1.65 V to 3.6 V
? Specified From –40°C to 85°C,–40°C to 125°C, and –55°C to 125°C
? Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
? Max tpd of 3.7 ns at 3.3 V
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 250 mA Per JESD 17

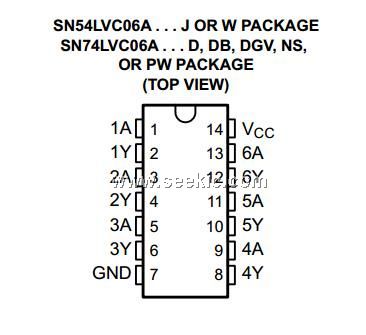

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC06ADR |
Texas Instruments |
Buffers & Line Drivers Hex Inverter Driver |
Data Sheet |
|
|
||||||||||||
|
SN74LVC06ADRE4 |
Texas Instruments |
Buffers & Line Drivers Hex Inverter Driver |
Data Sheet |
|
|
||||||||||||
|
SN74LVC06ADRG4 |
Texas Instruments |
Buffers & Line Drivers Hex Inverter Buffer Drivers |
Data Sheet |
|
|
||||||||||||
