Product Summary

The SN74LVC14ADR is a high-performance Hex Schmitt-Trigger Inverters.

Parametrics

SN74LVC14ADR Parametrics:

Packaging Tape & Reel (TR)
Logic Type Inverter, Buffer
Number of Circuits 6
Number of Inputs 1
Features Schmitt Trigger
Voltage - Supply 1.65 V ~ 3.6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 24mA, 24mA
Logic Level - Low 0.15 V ~ 0.8 V
Logic Level - High 1.3 V ~ 2 V
Max Propagation Delay @ V, Max CL 6.2ns @ 3.3V, 50pF
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-SOIC
Package / Case 14-SOIC (0.154", 3.90mm Width)
Dynamic Catalog 74LVC
Other Names 296-1699-2

Features

SN74LVC14ADR Features:

? Operate From 1.65 V to 3.6 V
? Inputs Accept Voltages to 5.5 V
? Max tpd of 6.4 ns at 3.3 V
? Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25°C
?I off Support Live Insertion, Partial Power Down Mode and Back Drive protection
? Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

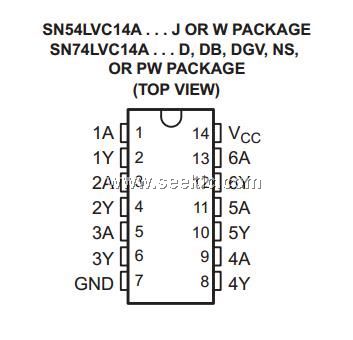

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

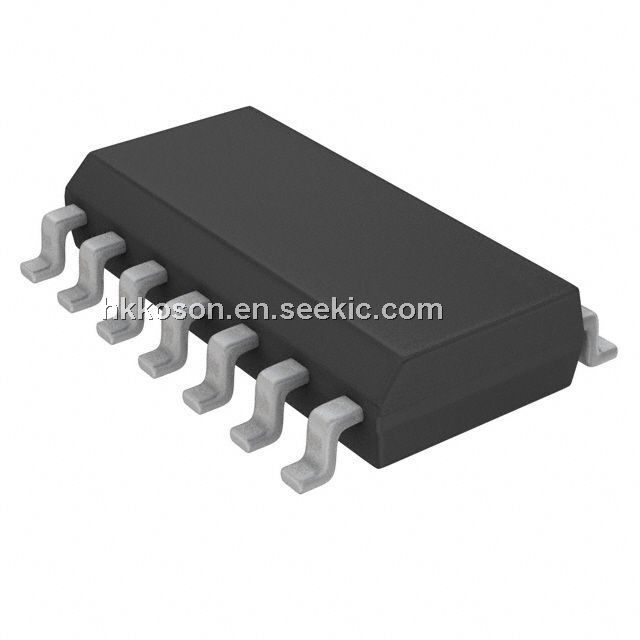

SN74LVC14ADR
SN74LVC14ADR

Texas Instruments

Inverters Hex Schmitt-Trigger

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.13
100-250: $0.11
SN74LVC14ADRE4
SN74LVC14ADRE4

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.12
100-250: $0.10
SN74LVC14ADRG3
SN74LVC14ADRG3

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.13
100-250: $0.11
SN74LVC14ADRG4
SN74LVC14ADRG4

Texas Instruments

Inverters Hex Schmitt-Trigger Inverter

Data Sheet

0-1: $0.28
1-25: $0.18
25-100: $0.15
100-250: $0.12
