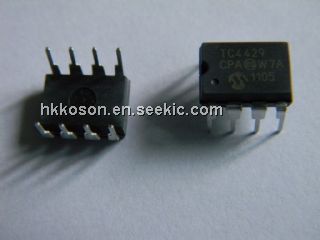

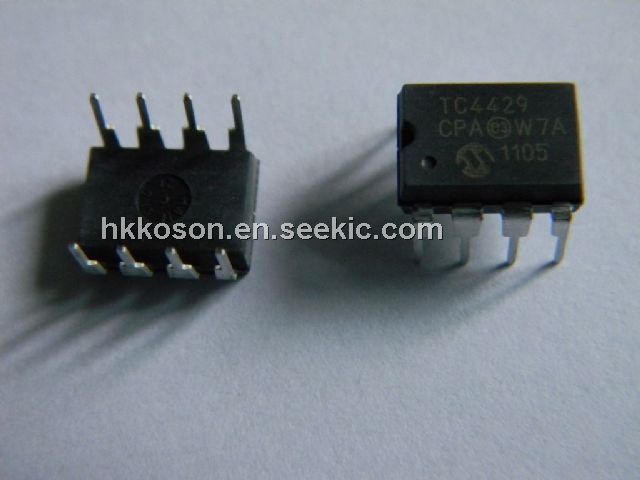

Product Summary

The TC4429CPA is 6A (peak), single-output MOSFET drivers. The TC4429CPA  is an inverting driver (pin-compatible with

the TC429).TC4429CPA is fabricated in CMOS for lower power and more efficient operation versus bipolar drivers.

Unlike other drivers, the TC4429CPA is virtually latch-up proof. It replaces three or more discrete components, saving PCB

area, parts and improving overall system reliability.

Parametrics

TC4429CPA Parametrics:

Packaging Tube
Configuration Low-Side
Input Type Inverting
Delay Time 55ns
Current - Peak 6A
Number of Configurations 1
Number of Outputs 1
High Side Voltage - Max (Bootstrap) -
Voltage - Supply 4.5 V ~ 18 V
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Package/Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-PDIP
Other Names 158-1027
158-1027-ND

Features

TC4429CPA Features:


  • Latch-Up Protected: Will Withstand >1.5A Reverse Output Current
  • Logic Input Will Withstand Negative Swing Up To 5V
  • ESD Protected: 4 kV
  • Matched Rise and Fall Times:- 25 ns (2500 pF load)
  • High Peak Output Current: 6A
  • Wide Input Supply Voltage Operating Range:- 4.5V to 18V
  • High Capacitive Load Drive Capability: 10,000 pF
  • Short Delay Time: 55 ns (typ.)
  • CMOS/TTL Compatible Input
  • Low Supply Current With Logic ‘1’ Input:- 450 μA  (typ.)
  • Low Output Impedance: 2.5 Ω
  • Output Voltage Swing to Within 25 mV of Ground or VDD
  • Space-Saving 8-Pin SOIC and 8-Pin 6x5 DFN Packages


Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TC4429CPA
TC4429CPA
Microchip Technology
Power Driver ICs 6A Sngl
Data Sheet
0-1: $1.07
1-10: $0.86
10-25: $0.71
25-100: $0.65
