Product Summary

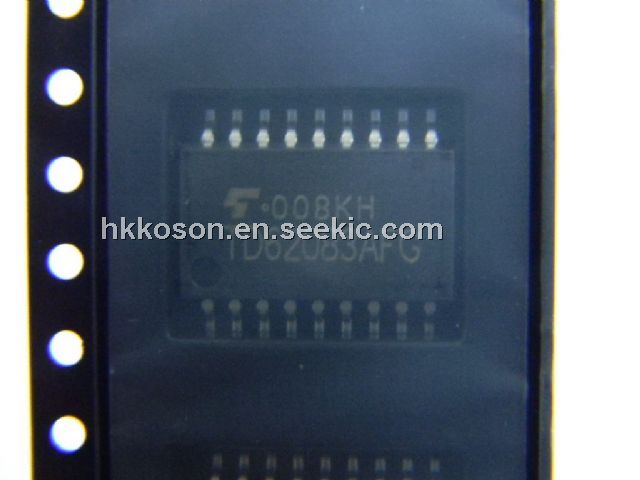

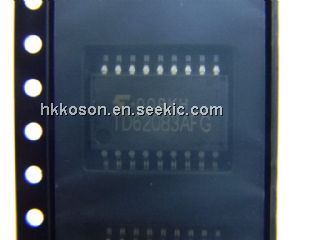

The TD62083AFG is high-voltage, high-current darlington drivers comprised of eight NPN darlington pairs.
All units feature integral clamp diodes for switching inductive loads.
Applications include relay, hammer, lamp and display (LED) drivers.
Parametrics
TD62083AFG Parametrics:
Packaging
Tube
Type
Driver
Protocol
-
Number of Drivers/Receivers
8/0
Duplex
-
Receiver Hysteresis
-
Data Rate
-
Voltage - Supply
5V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package/Case
18-SOIC (0.276", 7.00mm Width)
Supplier Device Package
18-SOP
Dynamic Catalog
Darlington Arrays
Other Names
TD62083AFG(5,S)
TD62083AFG(5,S)-ND
TD62083AFG(5S)
TD62083AFG(5S)-ND
TD62083AFG(O,N)-ND
TD62083AFG(ON)
TD62083AFG5S
TD62083AFG5S-ND
TD62083AFGON
TD62083AFGON-ND
Features
TD62083AFG Features:
- Output current (single output): 500 mA (max)
- High sustaining voltage output: 50 V (min)
- Output clamp diodes
- Inputs compatible with various types of logic.
- Package type-AFG: SOP-18 pin

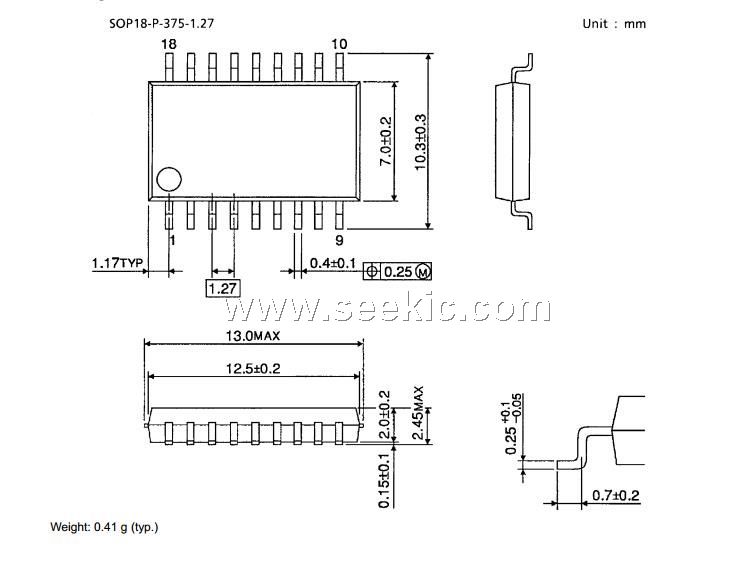

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD62083AFG(5,S) |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TD62083AFG(5,S,EL) |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TD62083AFG(O,N) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers 8-Ch NPN Driver 500mA 50V 5V |
Data Sheet |
|
|
||||||||||||
|
TD62083AFG(O,N,EL) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers 8-Ch NPN Driver 500mA 50V 5V |
Data Sheet |
|
|
||||||||||||
