Product Summary
The TDA7294V is a high-performance DMOS AUDIO AMPLIFIER.
Parametrics
TDA7294V Parametrics:
Packaging
Tube
Type
Class AB
Output Type
1-Channel (Mono)
Max Output Power x Channels @ Load
100W x 1 @ 8 Ohm
Voltage - Supply
±10 V ~ 40 V
Features
Depop, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Type
Through Hole
Supplier Device Package
15-Multiwatt
Package / Case
Multiwatt-15 (Vertical, Bent and Staggered Leads)
Dynamic Catalog
Class AB Amplifier
Other Names
497-2171-5
Features
TDA7294V Features:
- VERY HIGH OPERATING VOLTAGE RANGE(±40V)
- DMOS POWER STAGE
- HIGH OUTPUT POWER (UP TO 100W MUSIC POWER)
- MUTING/STAND-BY FUNCTIONS
- NO SWITCH ON/OFF NOISE
- NO BOUCHEROT CELLS
- VERY LOW DISTORTION
- VERY LOW NOISE
- SHORT CIRCUIT PROTECTION
- THERMAL SHUTDOWN

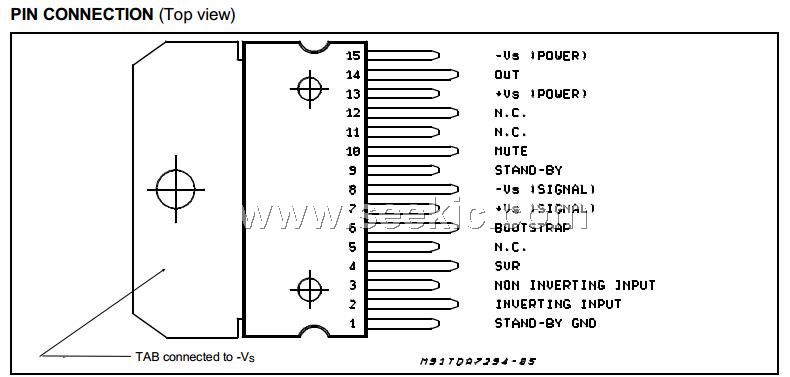

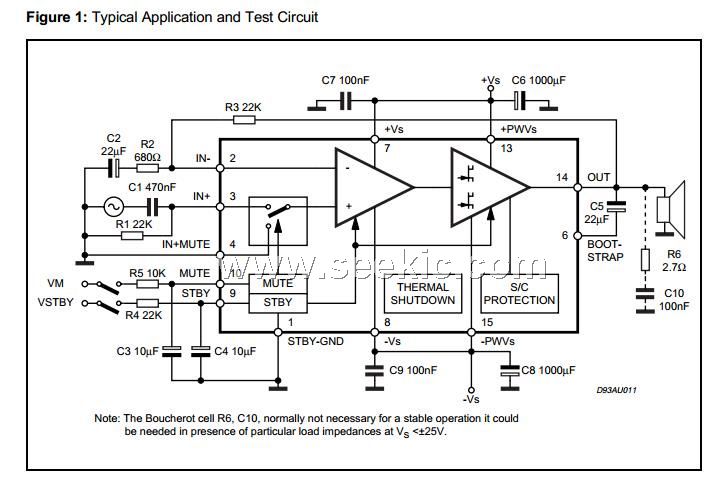

Diagrams

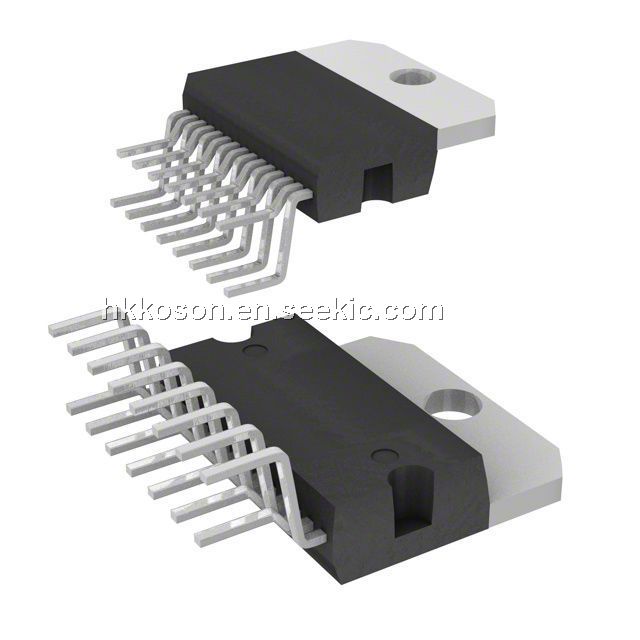

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7294V |
STMicroelectronics |
Audio Amplifiers 100W Audio Amplifier |
Data Sheet |
|
|
||||||||||||
